Bus lines, Table 8, Pinning m12 bus in/out lines – HEIDENHAIN PROFIBUS-DP (DPV0) User Manual

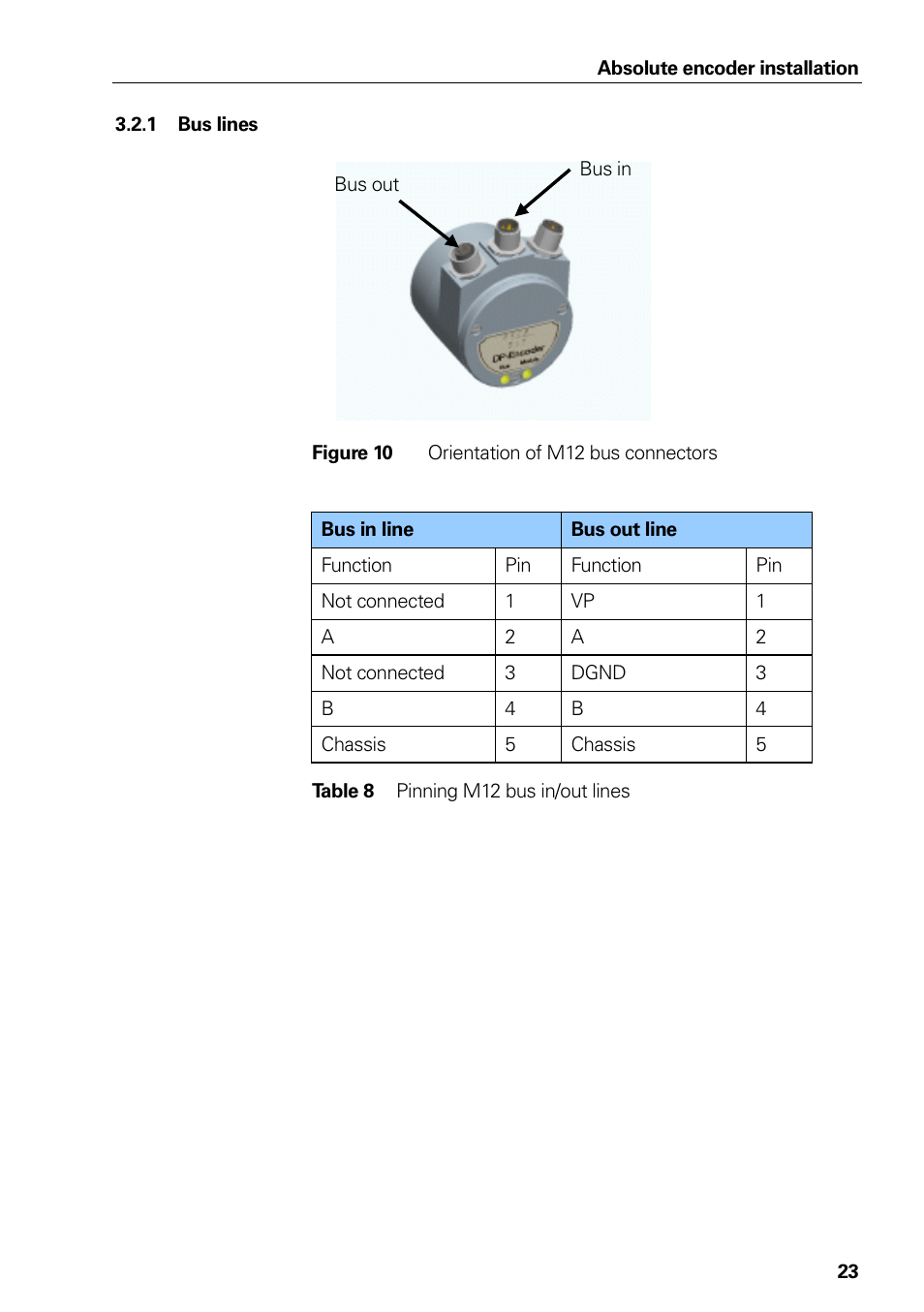

Page 23: Figure 10, Orientation of m12 bus connectors
