HEIDENHAIN iTNC 530 467
9.5 Defining the Mac
h
ining Plane with T
w
o V
e
ct
ors: VECT
OR
PLANE
Input parameters

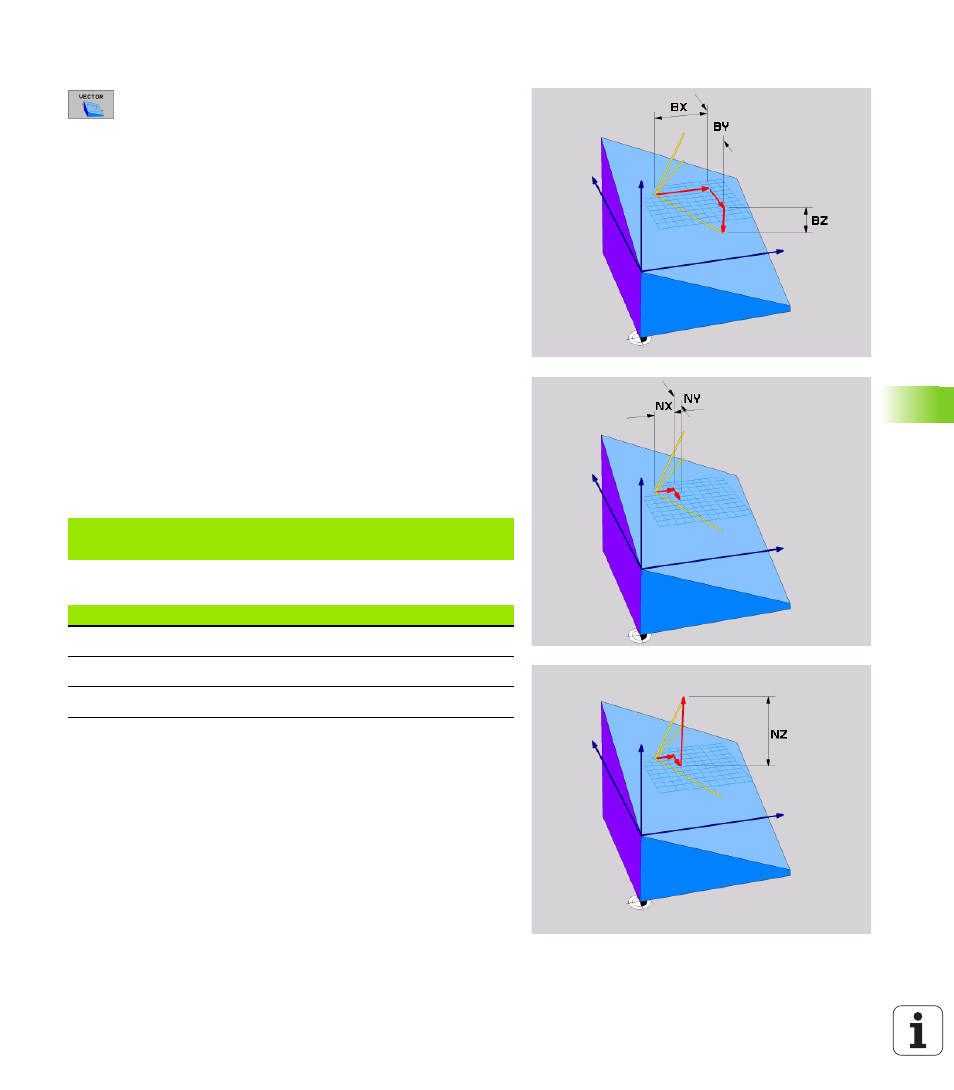

8 X component of base vector?: X component BX of the
base vector B (see figure at top right). Input range: -
9.9999999 to +9.9999999
8 Y component of base vector?: Y component BY of the
base vector B (see figure at top right). Input range: -
9.9999999 to +9.9999999
8 Z component of base vector?: Z component BZ of the
base vector B (see figure at top right). Input range: -
9.9999999 to +9.9999999
8 X component of normal vector?: X component NX of
the normal vector N (see figure at center right). Input
range: -9.9999999 to +9.9999999
8 Y component of normal vector?: Y component NY of
the normal vector N (see figure at center right). Input
range: -9.9999999 to +9.9999999
8 Z component of normal vector?: Z component NZ of
the normal vector N (see figure at lower right). Input
range: -9.9999999 to +9.9999999
8 Continue with the positioning properties (see
“Specifying the Positioning Behavior of the PLANE
Function” on page 472).
NC block
Abbreviations used
5 PLANE VECTOR BX0.8 BY-0.4 BZ-
0.4472 NX0.2 NY0.2 NZ0.9592 .....
Abbreviation Meaning
VECTOR Vector
BX, BY, BZ Base vector: X, Y and Z components
NX, NY, NZ Normal vector: X, Y and Z components
