HEIDENHAIN TNC 426 (280 476) Pilot User Manual
Page 94
95
Graphics
and
Status
Displays
Test Graphics and Program Run Graphics
Select the GRAPHICS or PGM+GRAPHICS screen layout!

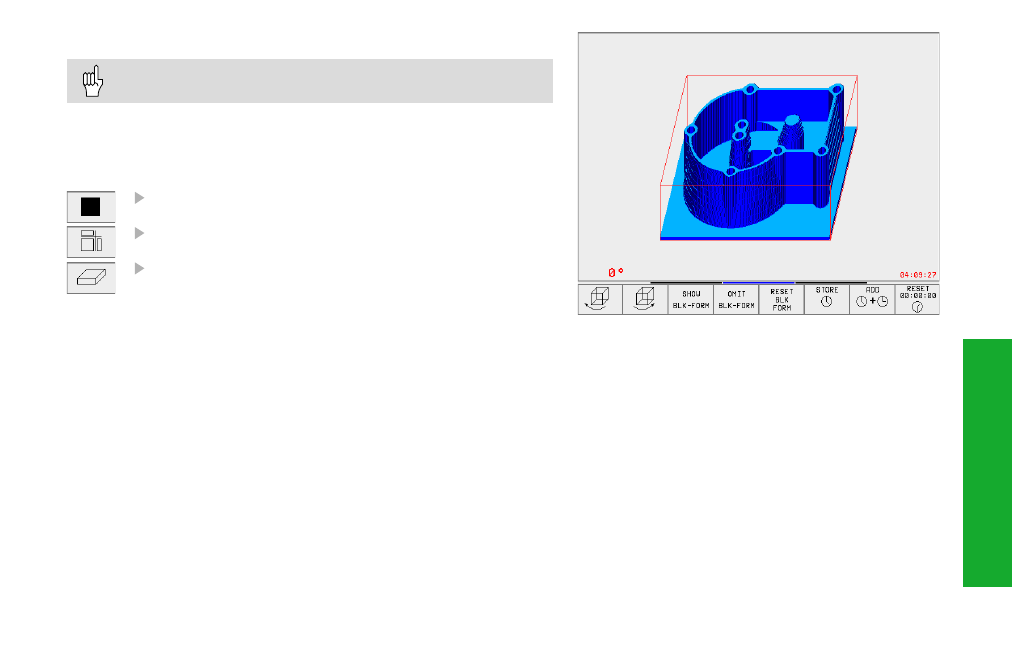

In the test run and program run modes the TNC can graphically simulate
the machining process. The following display types are available via soft
key:
Plan view
Projection in three planes
3D view
