Multipass
Milling
Multipass Milling

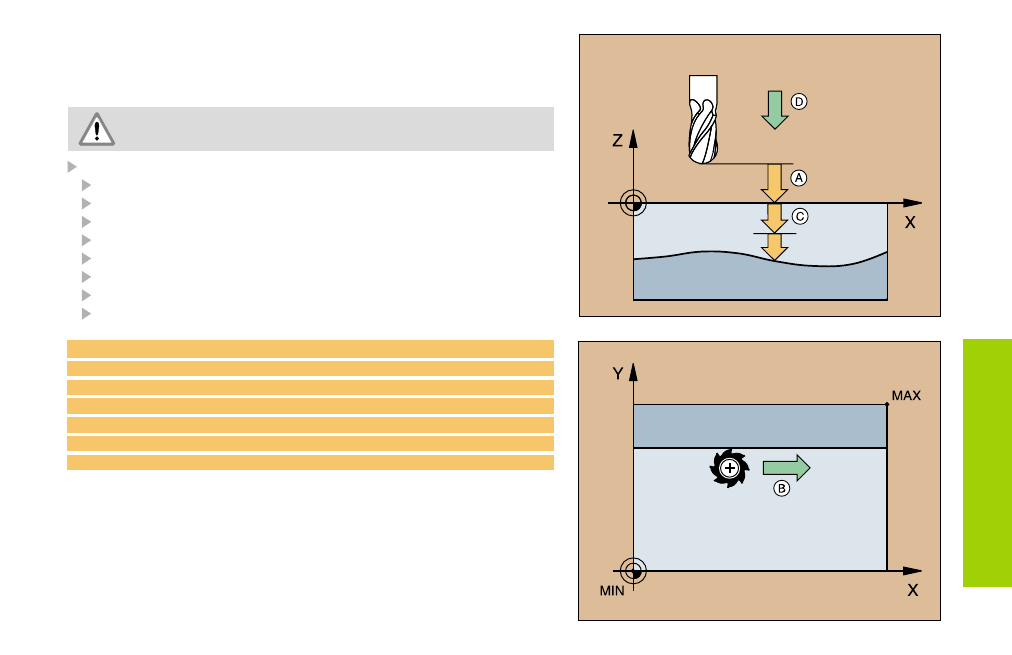

RUN DIGITIZED DATA (30)
This cycle requires a center-cut end mill as per ISO 1641!
CYCL DEF: Select Cycle 30 RUN DIGITIZED DATA
pgm name for digitized data
MIN. point range
MAX. point range
Set-up clearance: A
Pecking depth: C
Feed rate for pecking: D
Feed rate: B
Miscellaneous function M
7 CYCL DEF 30.0 RUN DIGITIZED DATA
8 CYCL DEF 30.1 PROGRAM1
9 CYCL DEF 30.2 X+0 Y+0 Z-35
10 CYCL DEF 30.3 X+250 Y+125 Z+15
11 CYCL DEF 30.4 SET UP 2
12 CYCL DEF 30.5 PECKG 5 F125
13 CYCL DEF 30.6 F350 M112 T0.01 A+10
