Cycles
for
Coordinate
Transformations

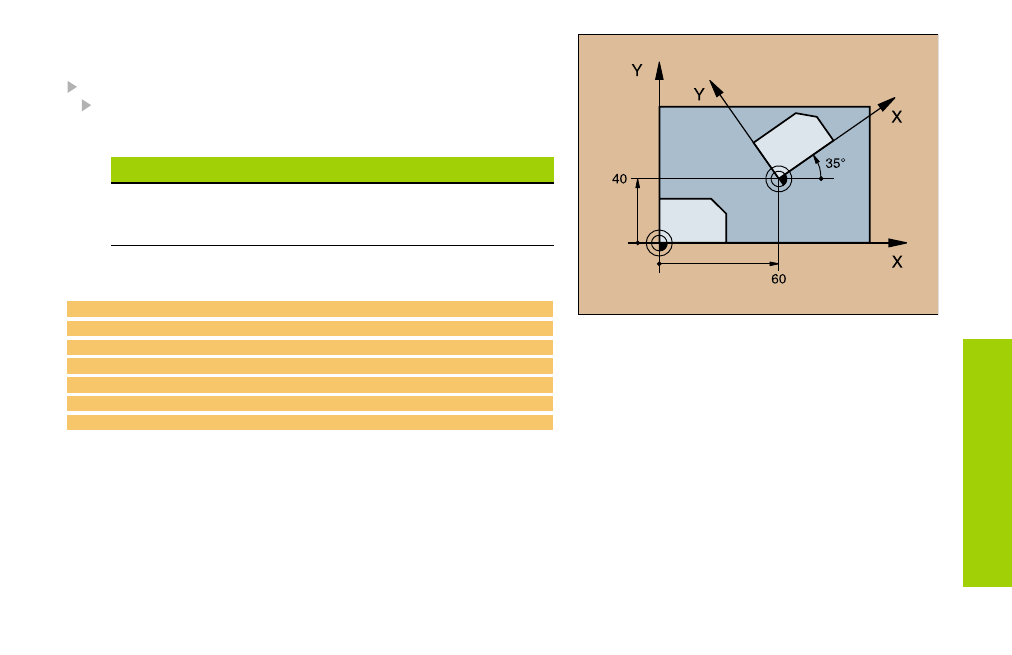

Rotation (10)
CYCL DEF: Select Cycle 10 ROTATION
Enter the rotation angle:
• Input range –360° to +360°
• Reference axes for the rotation angle
Working plane Reference axis and 0° direction
X/Y X
Y/Z Y
Z/X Z
To reset a ROTATION, re-enter the cycle with the rotation angle 0.
12 CALL LBL1
13 CYCL DEF 7.0 DATUM SHIFT
14 CYCL DEF 7.1 X+60
15 CYCL DEF 7.2 Y+40
16 CYCL DEF 10.0 ROTATION
17 CYCL DEF 10.1 ROT+35
18 CALL LBL1
