Rosemount 3300 Series

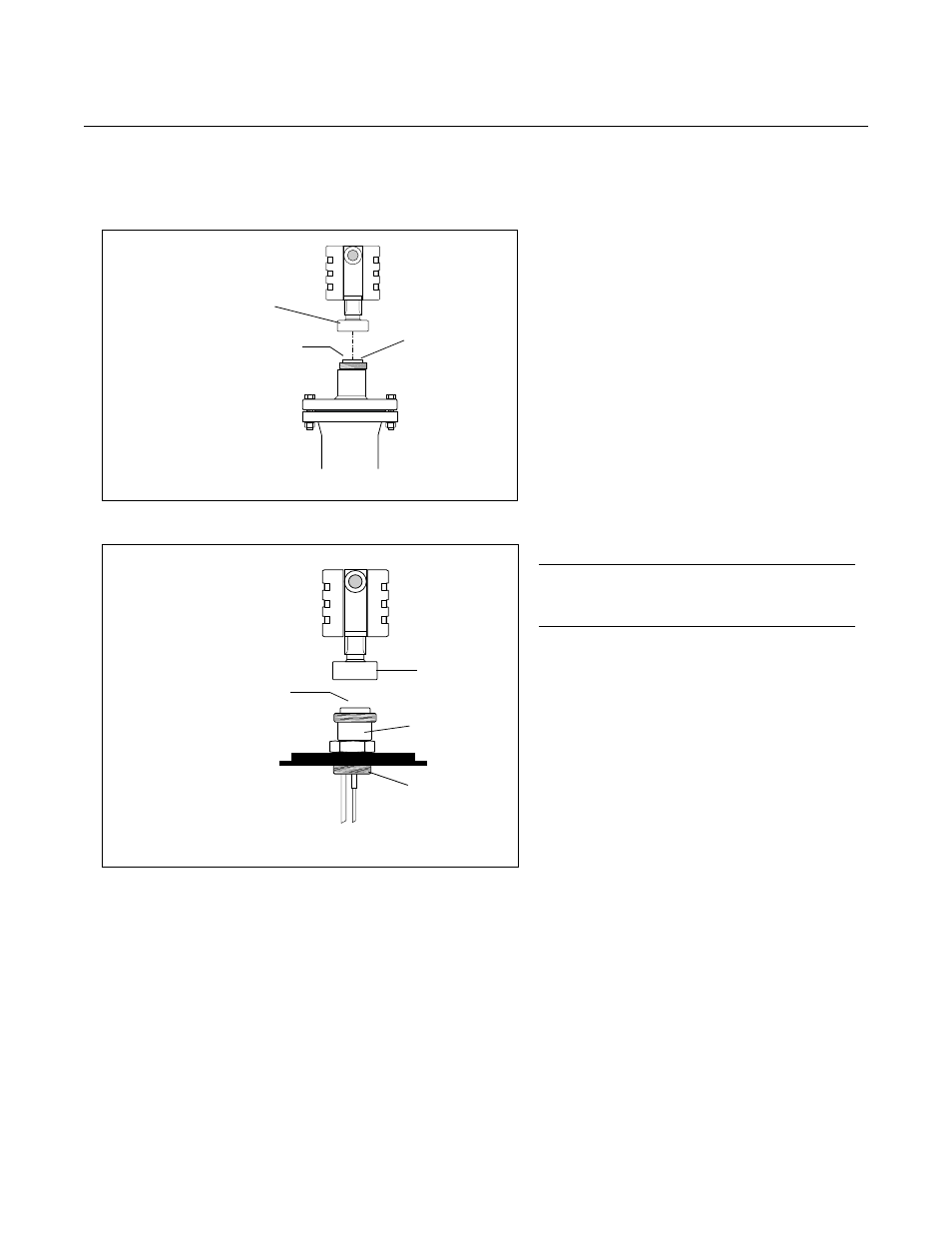

Removing the
Transmitter Head
1. Loosen the nut that connects the
transmitter housing to the Process Seal.
2. Carefully lift the transmitter head.
3. Make sure that the upper surface of the
Process Seal is clean and the
spring-loaded pin at the center of the
Process Seal is properly inserted (the pin
should move back when pushed into the
hole).
4. Attach the protection plug to the Process
Seal.
Nut
Process Seal
Put the protection
plug here!
FLANGE VERSION
TRANSMITTER HOUSING RE
MOVE
NOTE
Do not remove the Process Seal from the
adapter!
Nut
Process Seal
Adapter
THREADED VERSION
TRANS
MITTER HOUSING TH
RE
AD
RE
MOVE
Put the protection
plug here!
