Reference Manual

00809-0100-4811, Rev CA
February 2006

3-23

Rosemount 3300 Series

Connecting the
Transmitter

The 3300 Series is a two-wire loop powered transmitter accepting power
supplies ranging from 11 VDC to 42 VDC. It uses 4-20 mA power
superimposed with a HART signal.

To connect the transmitter:

1. Make sure that the power supply is disconnected.

2. Remove the cover on the transmitter housing terminal side (see label).

3. Pull the cable through the cable gland/conduit.

4. Connect wires according to Figure 3-15 for non-intrinsically safe output

and according to Figure 3-16 for Intrinsically safe output. Make sure that
the transmitter housing is grounded (see “Grounding“ on page 3-21).

5. Replace the cover, tighten the cable gland and connect the power

supply.

CONNECT_TRANSMITTER

.EP

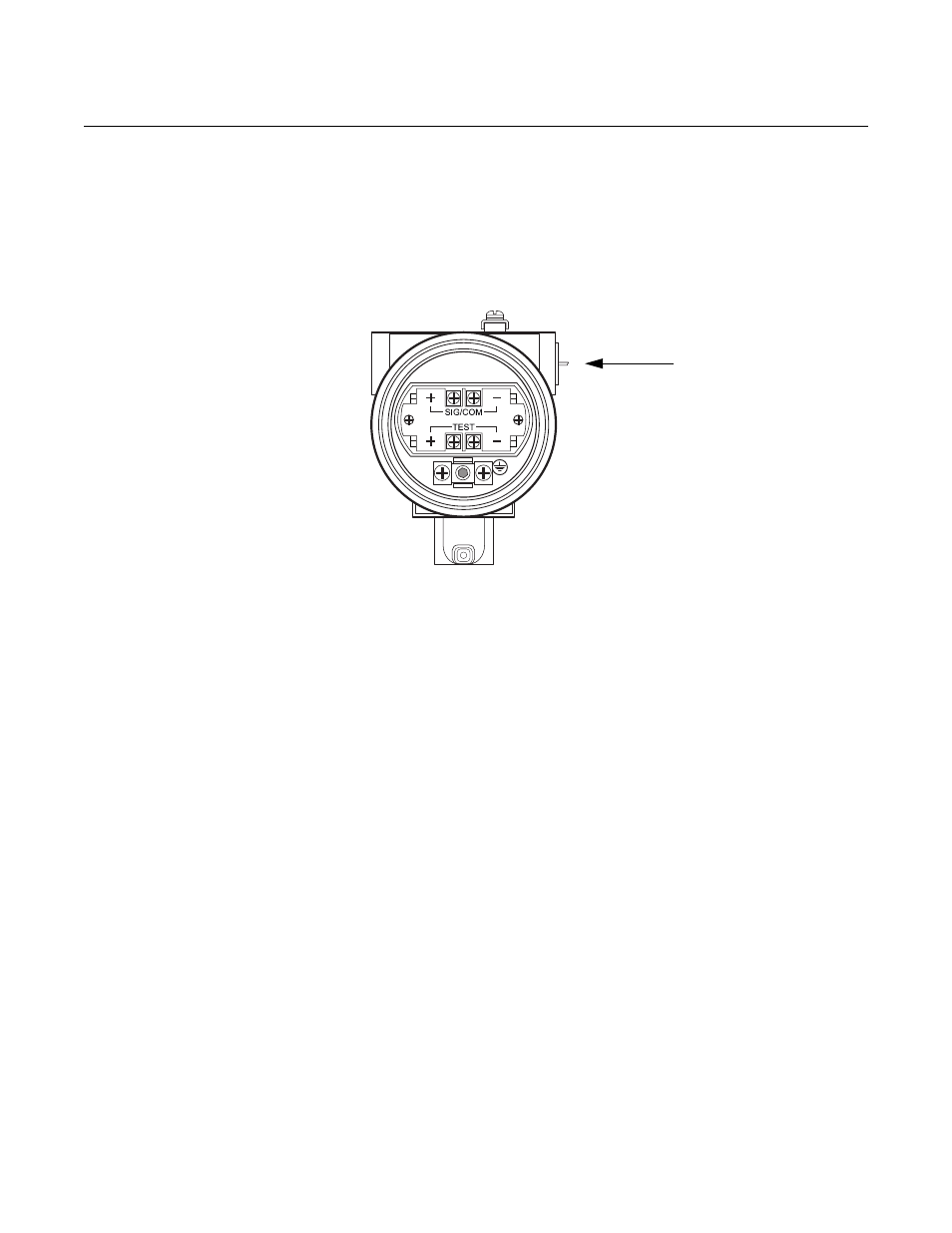

Cable entry
