Emerson Guided Wave Radar Level and Interface Transmitters 3300 - Manual (Page 114)

Reference Manual
00809-0100-4811, Rev CA
February 2006
Rosemount 3300 Series
A-10

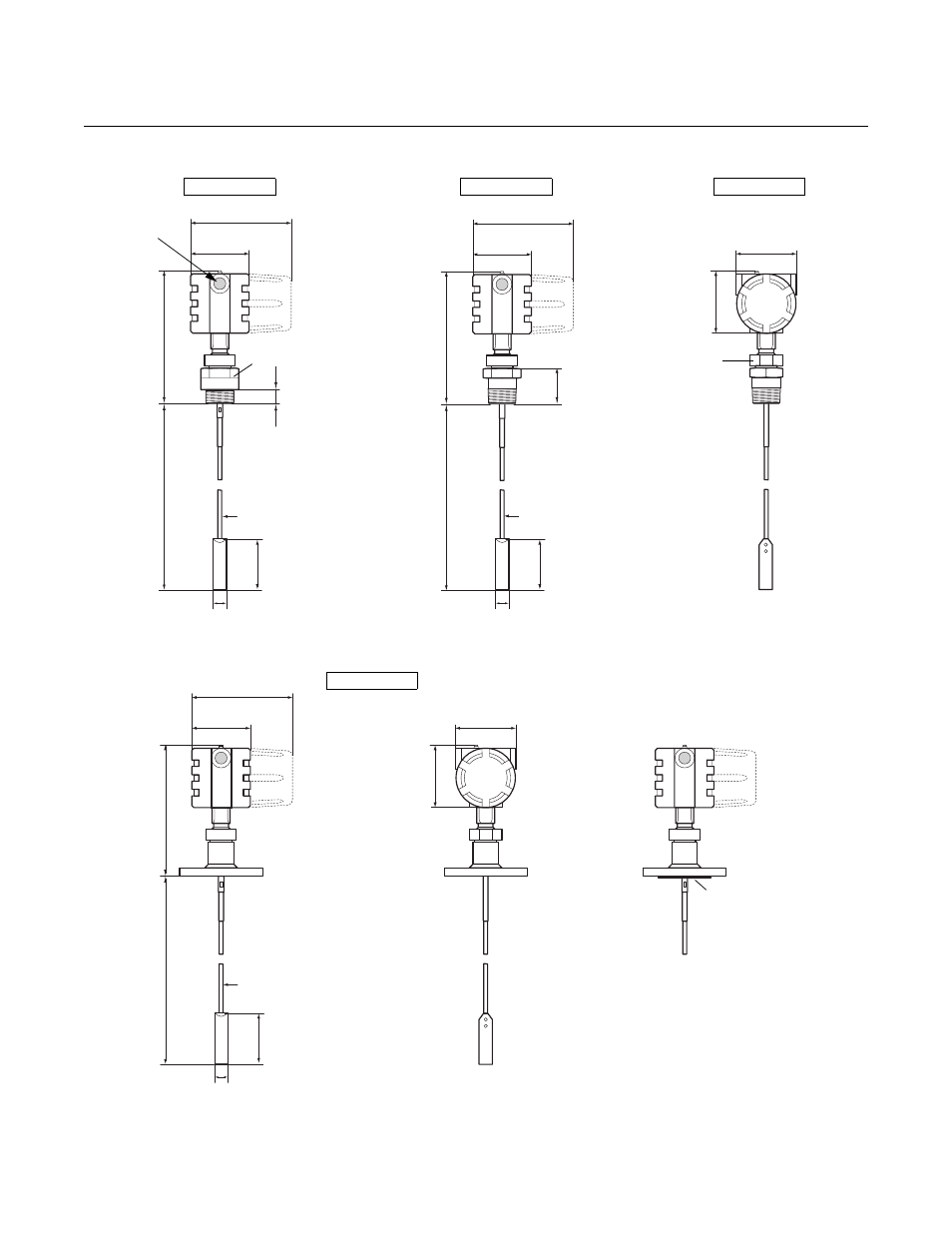

Figure A-8. Flexible Single Lead
Dimensions are in inches (millimeter).
0.9 (22)
½ - 14 NPT
Optional
adapters:
M20x1.5
PG13.5
Ш 0.16 (4)/
Ш 0.28 (7) PTFE
covered probe
s52/s60
G 1/1½ inch
s52
NPT 1/1½ inch
0.9 (22)
FLE
X
-SI
N
GL
E-LE
AD.E
P
S
6.8 (173)
9.5 (241)
4.3 (110)
6.8 (173)
4.3 (110) 4.1 (104)
4.5 (113)
1.1 (27)
5.5 (140)/
17.1 (435) PTFE
covered probe
L ≤ 77 feet
(23.5 m)
L ≤ 77 feet
(23.5 m)
9.5 (241)
NPT 1/1½ inch
2.4 (62)
Ш 0.16 (4)/
Ш 0.28 (7) PTFE
covered probe
5.5 (140)/
17.1 (435) PTFE
covered probe
0.9 (22)
FLE
X
-SI
N
GL
E-LE
AD-FLANG
E_CA
.EP
S
4.3 (110)
6.8 (173)
4.1 (104)
4.5 (113)
9.5 (241)
L ≤ 77 feet
(23.5 m)
Flange
The PTFE covered
probe is designed with
a protective plate.
Ш 0.16 (4)/
Ш 0.28 (7) PTFE
covered probe
5.5 (140)/
17.1 (435) PTFE
covered probe
