Reference Manual
00809-0100-4811, Rev CA
February 2006
Rosemount 3300 Series
4-6
Standard Tank Shapes

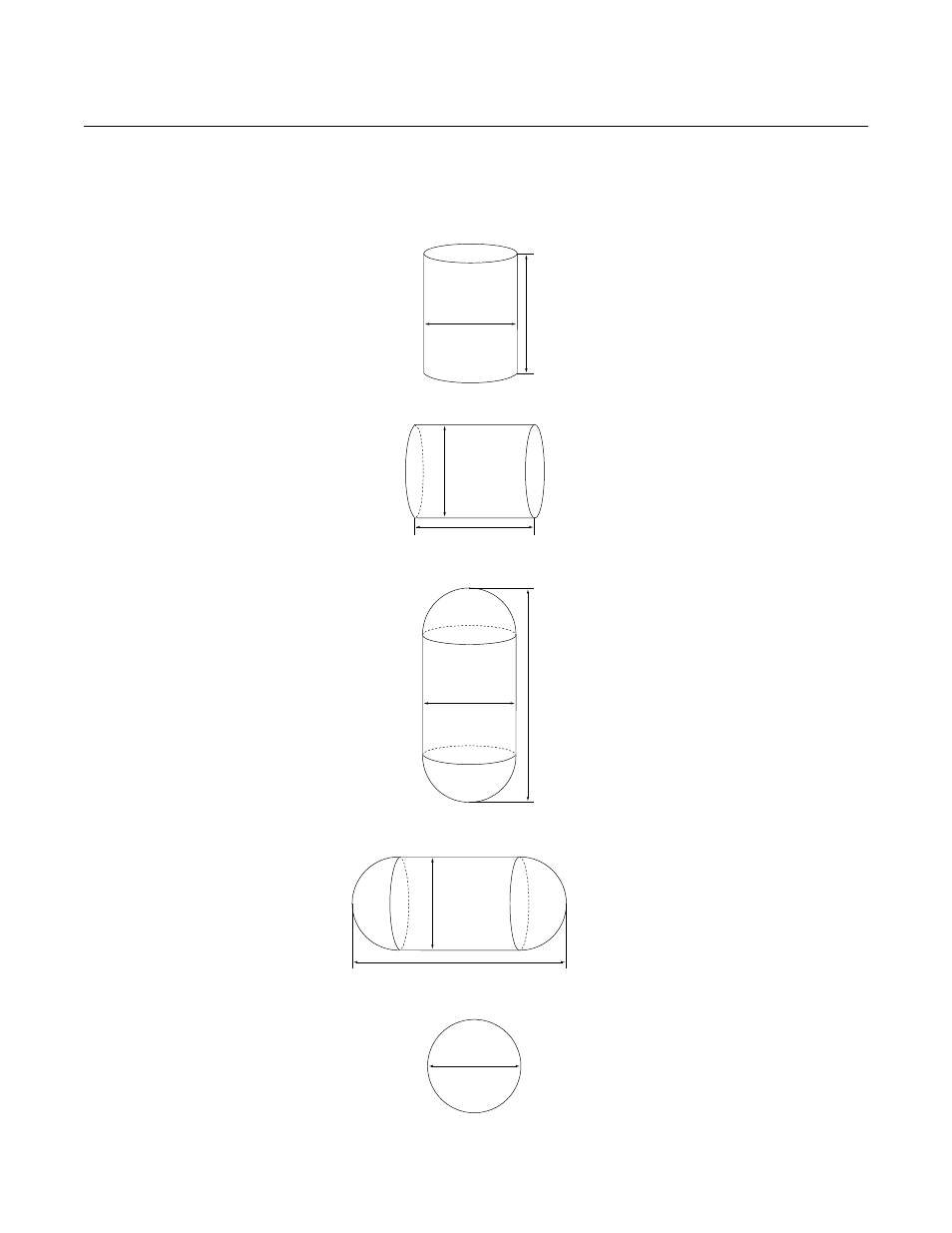

Figure 4-4. Standard tank
shapes
Vertical Cylinder
Vertical Cylinder tanks are specified by
Diameter and Height.
Horizontal Cylinder
Horizontal Cylinders are specified by
Diameter and Height.
Vertical Bullet
Vertical Bullet tanks are specified by
Diameter and Height. The volume
calculation model for this tank type
assumes that the radius of the bullet
end is equal to the Diameter/2.
Horizontal Bullet
Horizontal Bullets are specified by
Diameter and Height. The volume
calculation model for this tank type
assumes that the radius of the bullet
end is equal to the Diameter/2.
Sphere
Spherical tanks are specified by
Diameter.
Diameter Height
V
E
RTICAL
CY
LINDE
R
Diameter
Height
HORIZONT
AL
CYL
INDE
R
Diameter Height
VER
TIC
AL
BU
L
L
ET
Diameter
Height
HO
RI
ZON
T
AL
BU
L
LET
Diameter
S
P
HE
RE
