Installation of Single
Lead Probes in
Non-metallic Tanks For optimal single lead probe performance in non-metallic tanks the probe
must be mounted with a metal flange, or screwed in to a metal sheet (d>8
in./200 mm) if the threaded version is used.

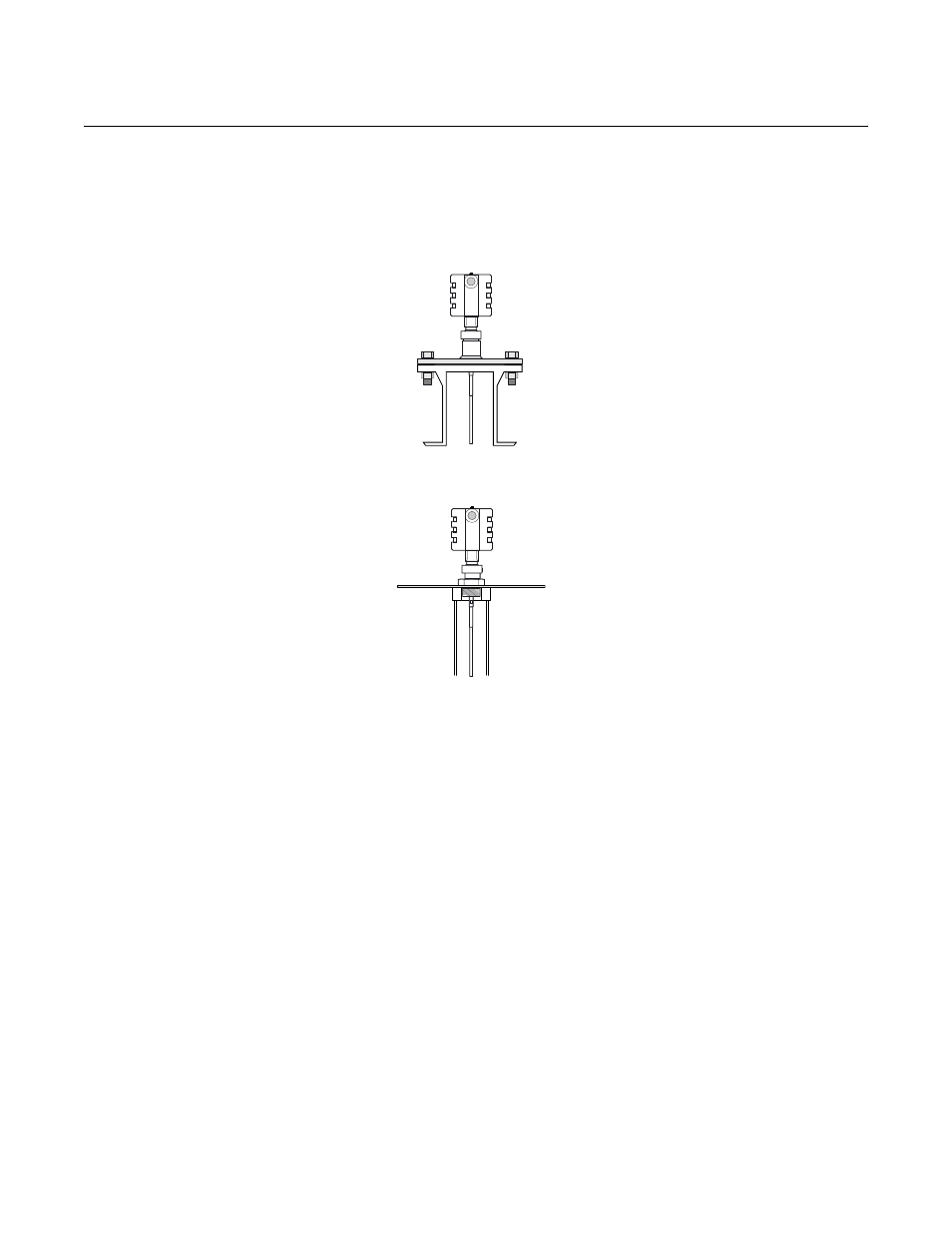

Figure 3-4. Mounting in
non-metallic tanks.
Avoid disturbing EMC environment near the tank. Installation in metallic tank
is recommended.
Metal flange Ø>2”/DN50
Metal sheet Ø>8”/200 mm
