4. Configuration
Setting Analog Gain, Mute Detection and Operating Levels
How to set analog operating levels
1 Locate the analog input cards, as shown in Figure 4-5.
Figure 4-5. Location of Input Cards (Front View)
2 Gently remove the input card being configured.

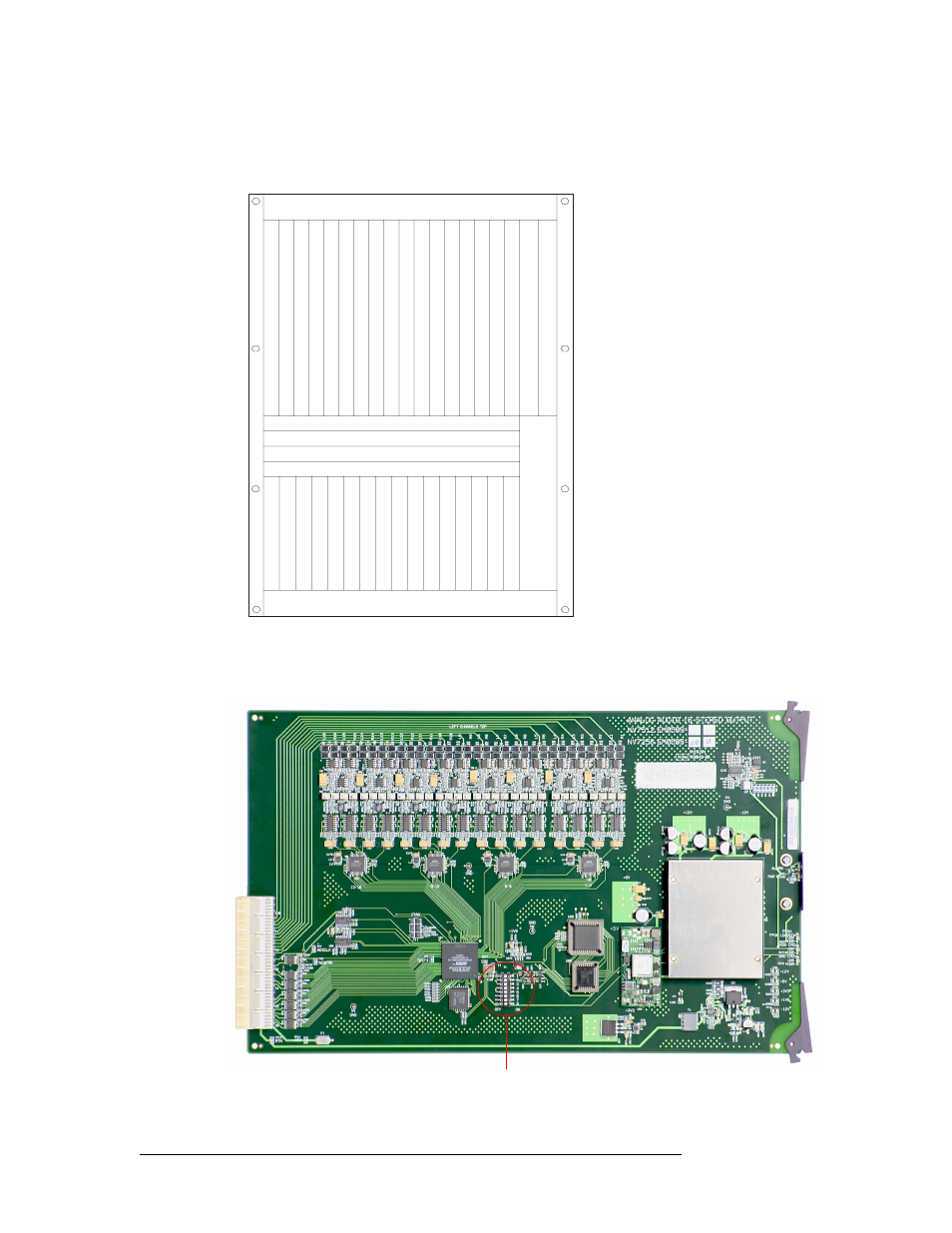

3 On the card, locate the DIP switches for setting operating levels, as shown in Figure 4-6.
Figure 4-6. Analog Audio Input Card Switch and Jumper Locations
Fan
Fan
Slot A - Crosspoint (Outputs 1-128)
Slot B - Crosspoint (Outputs 129-256)
Slot C - Crosspoint (Outputs 257-384)
Slot D - Crosspoint (Outputs 385-512)
Output
s 1–32
Output
s 33-64
Output
s 65-96
Output
s 97-128
Output
s 129-160
Output
s 161-192
Output
s 193-224
Output
s 225-256
Output
s 257-288
Output
s 289-320
Output
s 321-352
Output
s 353-384
Output
s 385-416
Output
s 417-448
Output
s 449-480
Output
s 481-512
Control — Secondary Control — Primary
Input
s 1–32
Input
s 33-64
Input
s 65-96
Input
s 97-128
Input
s 129-160
Input
s 161-192
Input
s 193-224
Input
s 225-256
Input
s 257-288
Input
s 289-320
Input
s 321-352
Input
s 353-384
Input
s 385-416
Input
s 417-448
Input
s 449-480
Input
s 481-512
Fan
Monitor
DIP Switches
