88
Technical Details

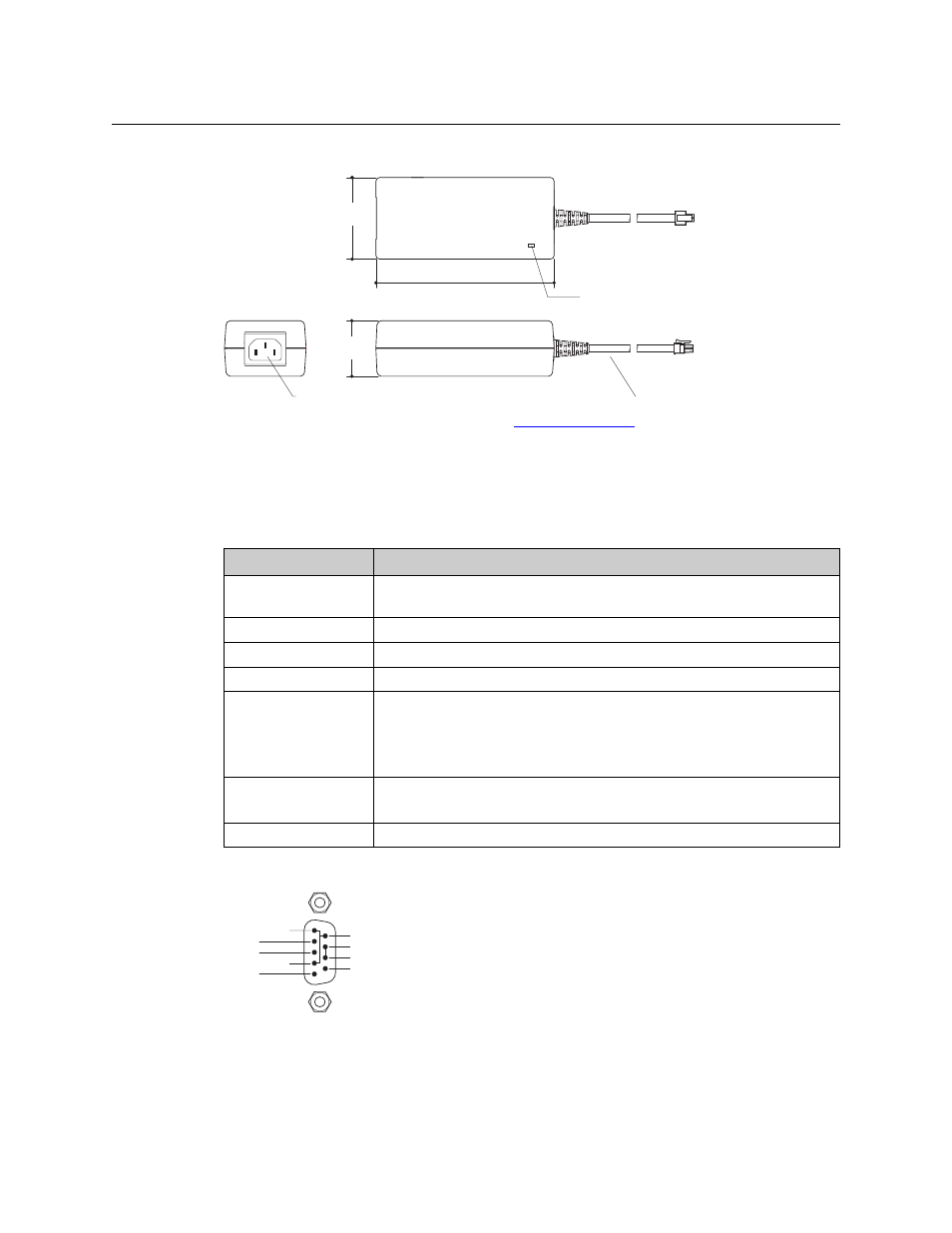

NV9654 Specifications
The power supply is an Grass Valley PS0001-00:
Fig. 7-1: The power output has Molex 4-pin plug. See Power Cord Retention on page 93.
NV9654 Specifications
Table provides specifications for the NV9654.
The RS-232 connector has this pinout:
Pins 1, 4, and 6 are tied together and pins 7 and 8 are tied together. None of those pins are
connected to any circuitry.
Indicator LED
5.24
[133.0]
2.39
[60.7]
AC Input
1.62
[41.0]
DC Output
NV9654 Physical Specifications
Specification Detail
Dimensions Height: 3.47” (88.1 mm), fits EIA 2 RU (3.5” or 88.9 mm),
Width: 19.0? (482.6 mm).
Depth 3.20 ± 0.01” (81.3 mm), overall.
Power 12.72 W
Weight 1.892 kg (4.17 lb)
Connectors Power: 2 connectors, Molex 4-pin, keyed.
Ethernet: 1 connector, 10/100baseT, RJ-45 jack.
RS-232: 1 connector, 9-pin D type, for diagnostics and upgrades.
GPIO: DB25.
Tally Interface (GPIO) Input: < 5VDC continuous; < 48VDC for less than 5 seconds; 1.2mA when on.
Output: < 150mA; < 200VAC.
Grounding terminal None.
n.c.
1
5
9
6
Tx
Rx
Gnd
n.c.
n.c.
n.c.
n.c.
n.c.
