19
NV9654
User’s Guide
The previous ilustration showed the configuration page set up for ‘All Buttons’ mode. The panel
can also be configured in ‘Display and Buttons’ mode, in which case the “display” section of the
button matrix is delineated by a white line on the page:

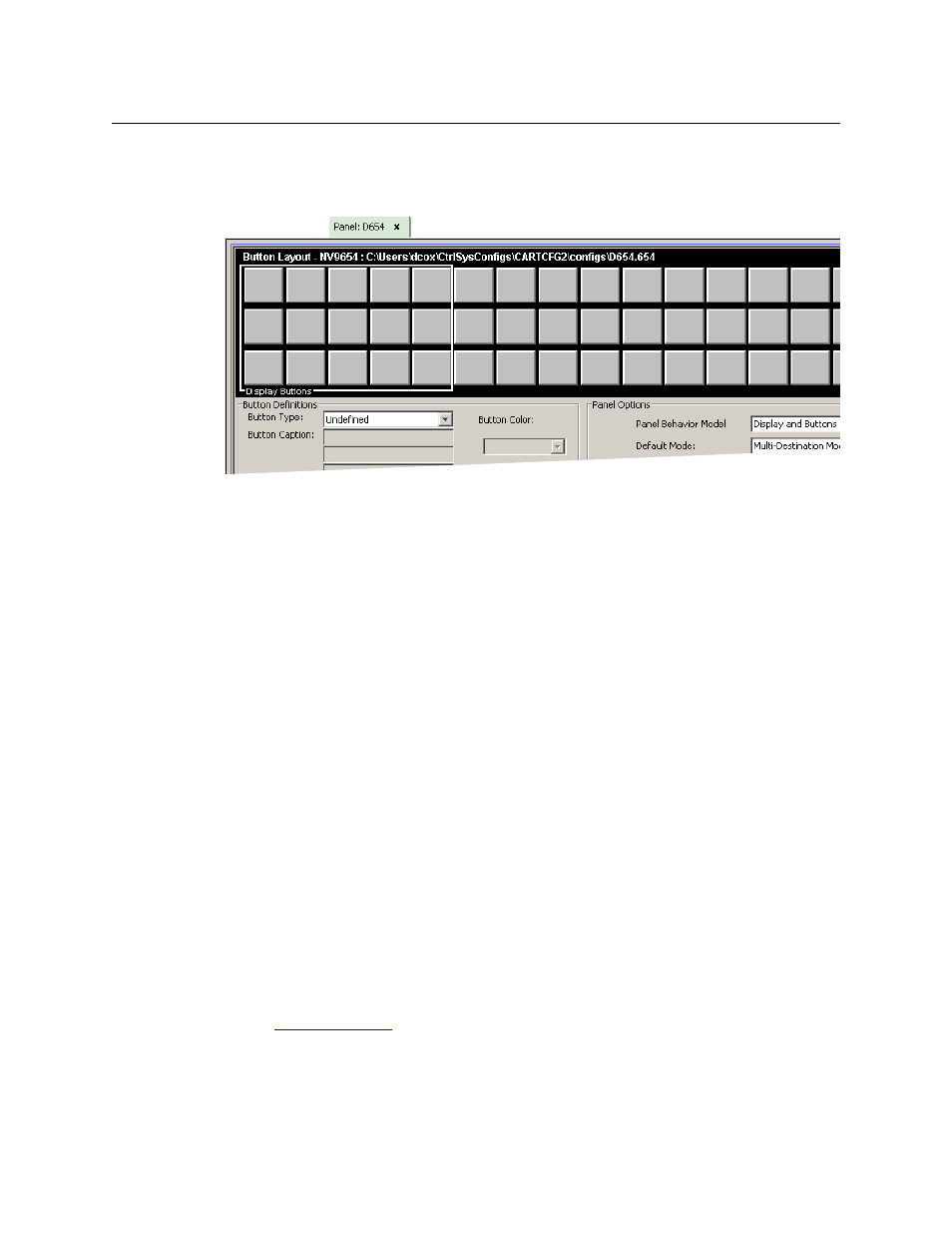

Fig. 4-2: NV9654 Configuration Page (Default, ‘Display and Buttons’ Mode)
The display section is the 5×3 array of buttons at the left.
Regions of the Configuration Page
T here are 5 main regions:
• The NV9654 panel image.
The NV9654 has 54 LCD buttons in an 18×3 array. Click on a button to assign a function to it.
In some cases, you can click or double-click a button to execute the button function. Dou-
ble-clicking a ‘Navigate’ button, for instance, causes the button’s “subpage” to appear.
Buttons can be illuminated in several colors: green, amber, yellow, red, blue, purple, and
grey. There are 3 levels of illumination: high tally (bright), low tally (muted) and off. Unde-
fined buttons are turned off (dark) on the actual panel and are gray in the configuration
page.
Buttons in the 5×3 display section are always white (if the display is enabled). Operators can
turn the display on and off. Configurers may assign button functions to the buttons of the
display section for those occasions when the operator has turned the display off.
 The display is available only at the top-level page of the button tree.
 Buttons disabled during operation have text, but are dark on the control panel. Unde-
fined buttons are dark and have no text.
• Button definition section.
In this section, configurers make button assignments, using its pull-down menus and text
fields. It is here that the button captions are defined and the button color is specified. (For
some button types, you cannot define a caption. The button text is defined by the system.)
See Button Definitions , following.
