18
Configuration
NV9654 Panel Configuration Page
NV9654 Panel Configuration Page
This is the default NV9654 panel configuration page in NV9000-SE Utilities:

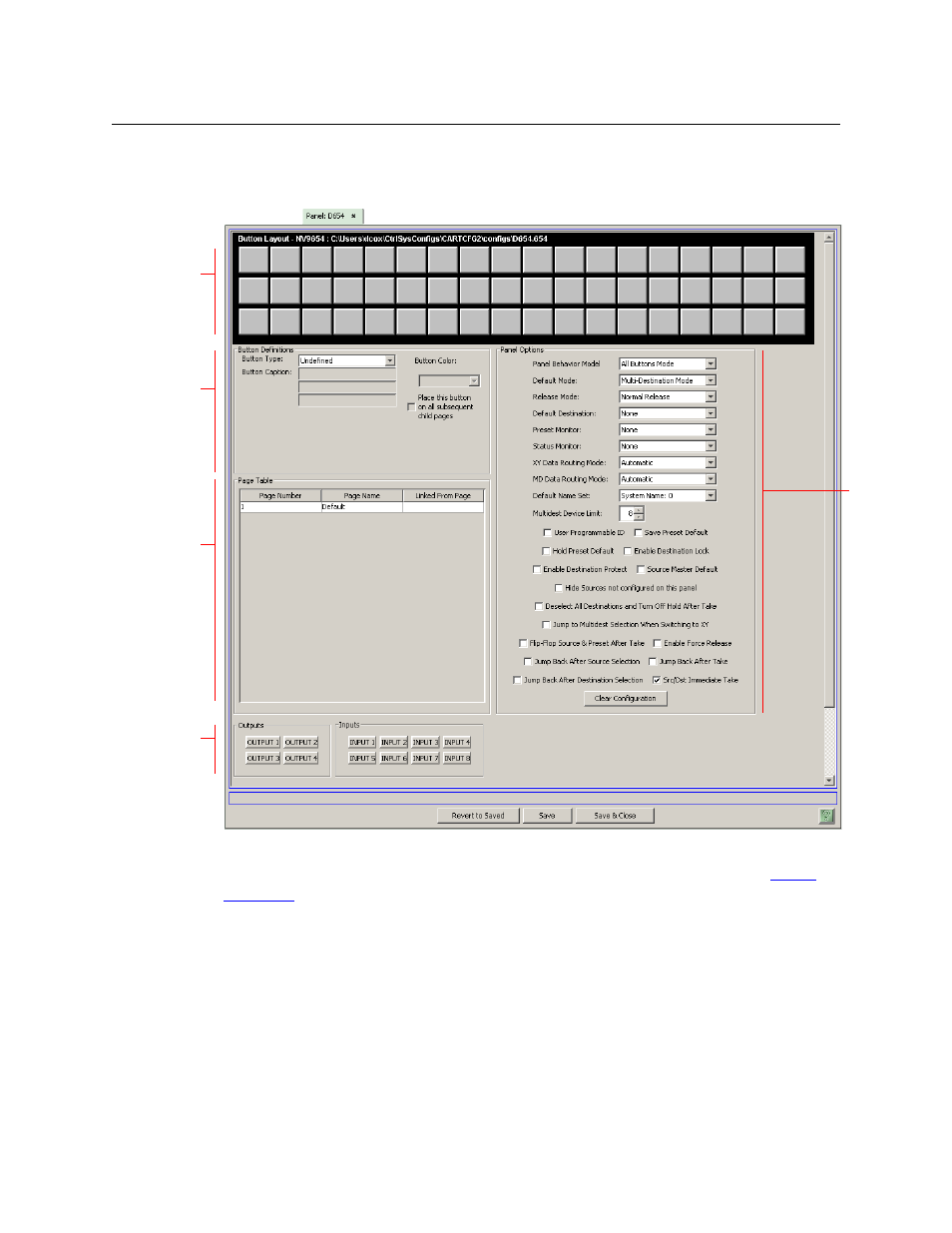

Fig. 4-1: NV9654 Configuration Page (Default, All Buttons Mode)
Similar pages exist for NV9654 suffix templates and global navigation templates. See Global
Navigation on page 44.
Figure 4-1 shows the default panel configuration page, which has no buttons defined. After you
configure buttons, and button pages, the appearance of the panel buttons will have changed.
At the bottom of the page are two important configuration buttons: ‘Revert to Saved’ and ‘Save’.
The ‘Save’ button commits modifications you have just made. The ‘Revert to Saved’ button
restores the last saved version of the panel configuration, canceling any changes you just made.
The ‘Save and Close’ button, also at the bottom, dismisses the configuration page in addition to
saving the configuration changes.
Button
Definition
Section
Button
Page Table
GPIO Defi-
nitions
Panel
Options
Panel Image
