1-5
Serial Data Word Description
Serial Data Word Description
The serial data word contains eleven bits, as shown in Figure 1-3:

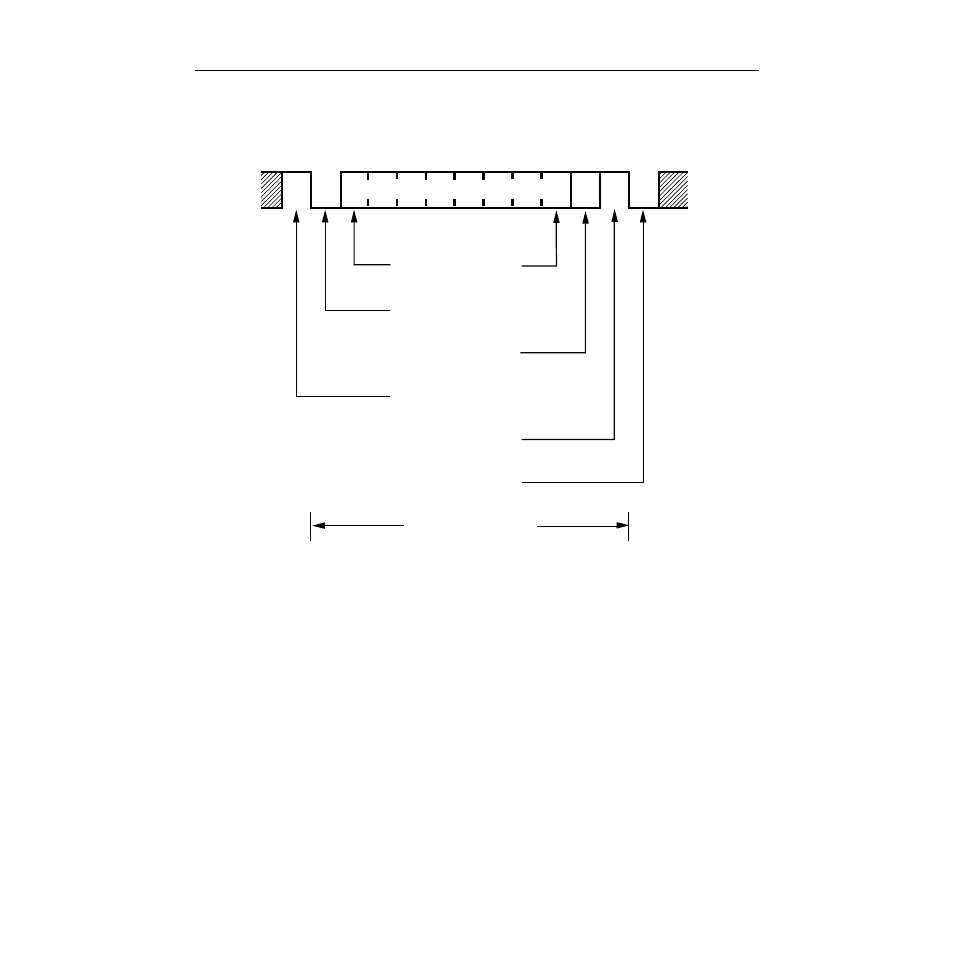

Figure 1-3. Serial Data Word
P D D D D D D D D
0 1 2 3 4 5 6 7
Data, 8 Bits, LSB First
Start Bit, Always Zero
Parity Bit
Previous Character's Stop Bit
Stop Bit, Always One
Next Character's Start Bit
11 Bits Character Length
0350-02
