Kayak — User Manual 91
Section
3
Control Panels
Overview Kayak-100 Panel
• Sources are selected in the crossbar section on the left bottom side of the
panel.
• Basic key control, DPM / Ram / MP / E-MEM / MaKe selection and
transition control are handled in the middle sections.
• The graphical menu in the top section allows full control and edit facil-
ities.
• The positioner subpanel in the upper right provides easy positioning of
DPM, wipes, and pattern keys.
• The separate Cut/Auto buttons in the bottom right section allow keyer
control independent from the transition section.

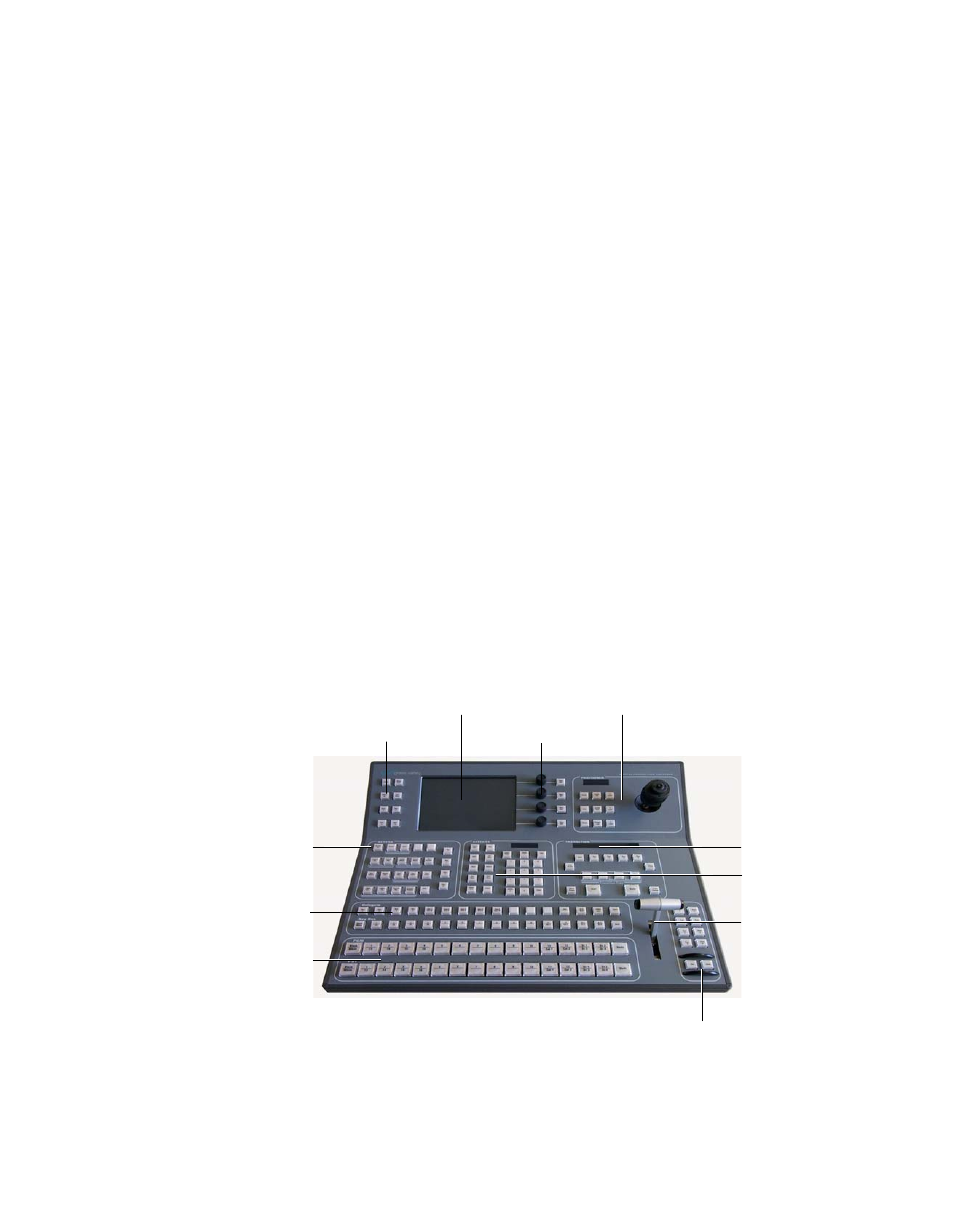

Figure 61. Overview Kayak-100 Control Panel
Digipots and
Menu Buttons
Positioner Gra phical Display
Menu Navigation
Program/Preset
Crossbar Selection
Keyer
2nd Transition Subpanel
Positioner Subpanel
Transition Lever
Effect Subpanel
Graphical Display
Keyers Subpanel
Misc Delegation
and Crossbar Selection
Main Transition
Subpanel
Digipots and Menu Buttons Menu Navigation Buttons
Program/Preset
Crossbar Selection
Kayak DD-1 Pa
nel
