Kayak — User Manual 441
RAM Recorder Menus
Destination Pixel Format
Actuating the Convert button opens a dialog window for the detail adjust-
ments. The following destination pixel formats can be adjusted:

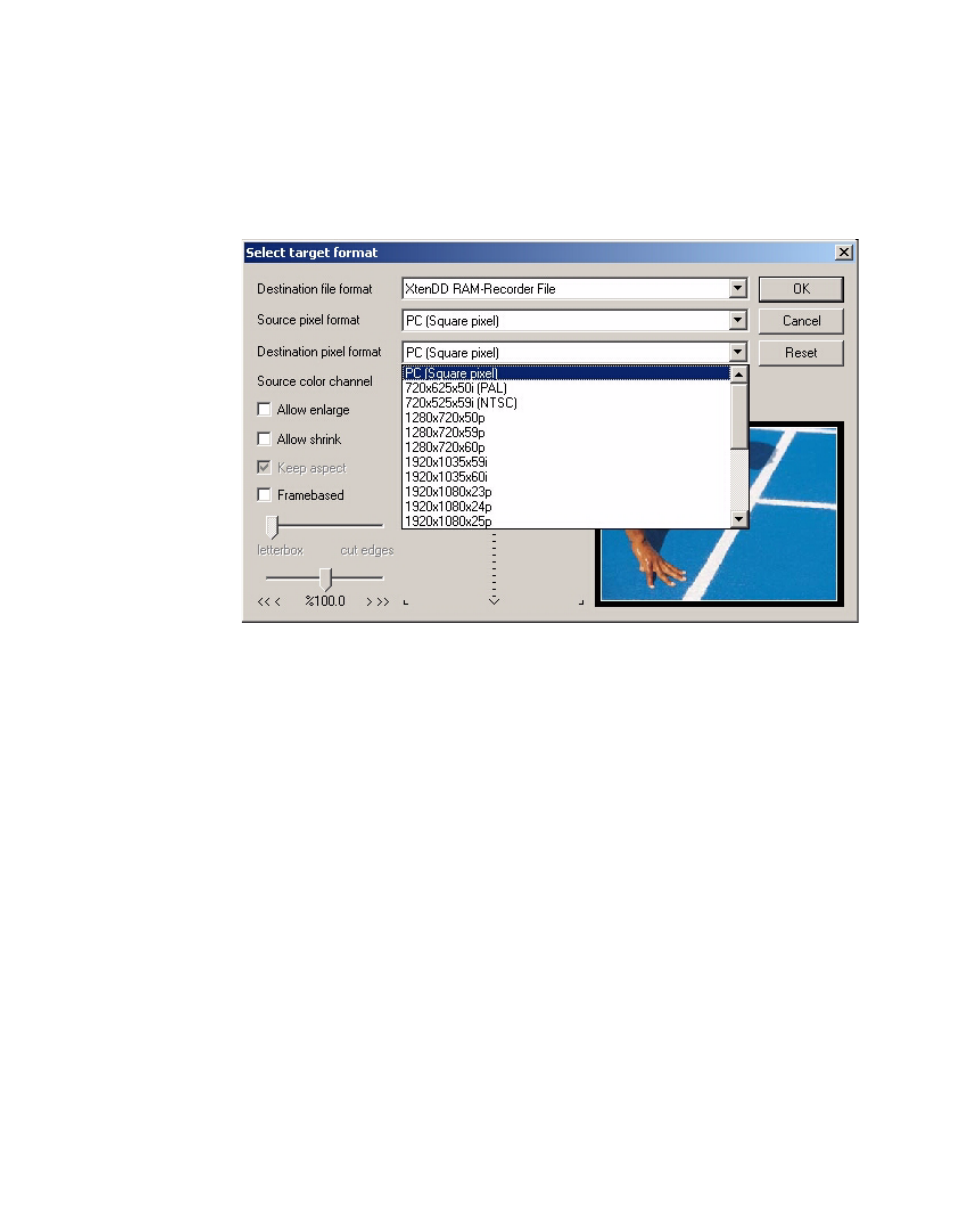

Figure 360. RAM Recorder – Image Converter – Destination Pixel Format
If the source and destination pixel format is different, the image is resized
to maintain the aspect ration of the image content.
• If PC as destination pixel format is selected, the first picture to be con-
verted determines the picture format of the destination file.
• If a TV format is selected as destination pixel format is selected, the des-
tination file is coupled with TV format.
Converting Size, Positioning, and Preview
Having selected the conversion parameters, you may have a look at the
format in the Preview window. The red frame shows the outer edge of the
picture (TV format only) to be converted and the white frame shows the
limits of the picture screen after conversion.
The switches Allow enlarge , Allow shrink , Keep aspect and the controls located
below enable adjusting and locating the desired picture section.
If PC is selected as destination pixel format, only the “size” control (<<<
xx% >>>
) is active.
