Kayak — User Manual 401
Introduction
Dialog Title
A dialog title is presented inside the dialog area. It is edged by a graphic
elevation. The hardware resources addressed by the control dialog as well
as the addressed area come from the selection of this area. Example: hard-
ware resource
M/E1 , area Main menu. The specified M/E text (e.g. M/E1 ) has
the M/E color coding.
Clicking the mouse into the header selects the menu for the next associated
hardware resource. For example, the control dialog of
M/E1 then changes to
M/E2 .

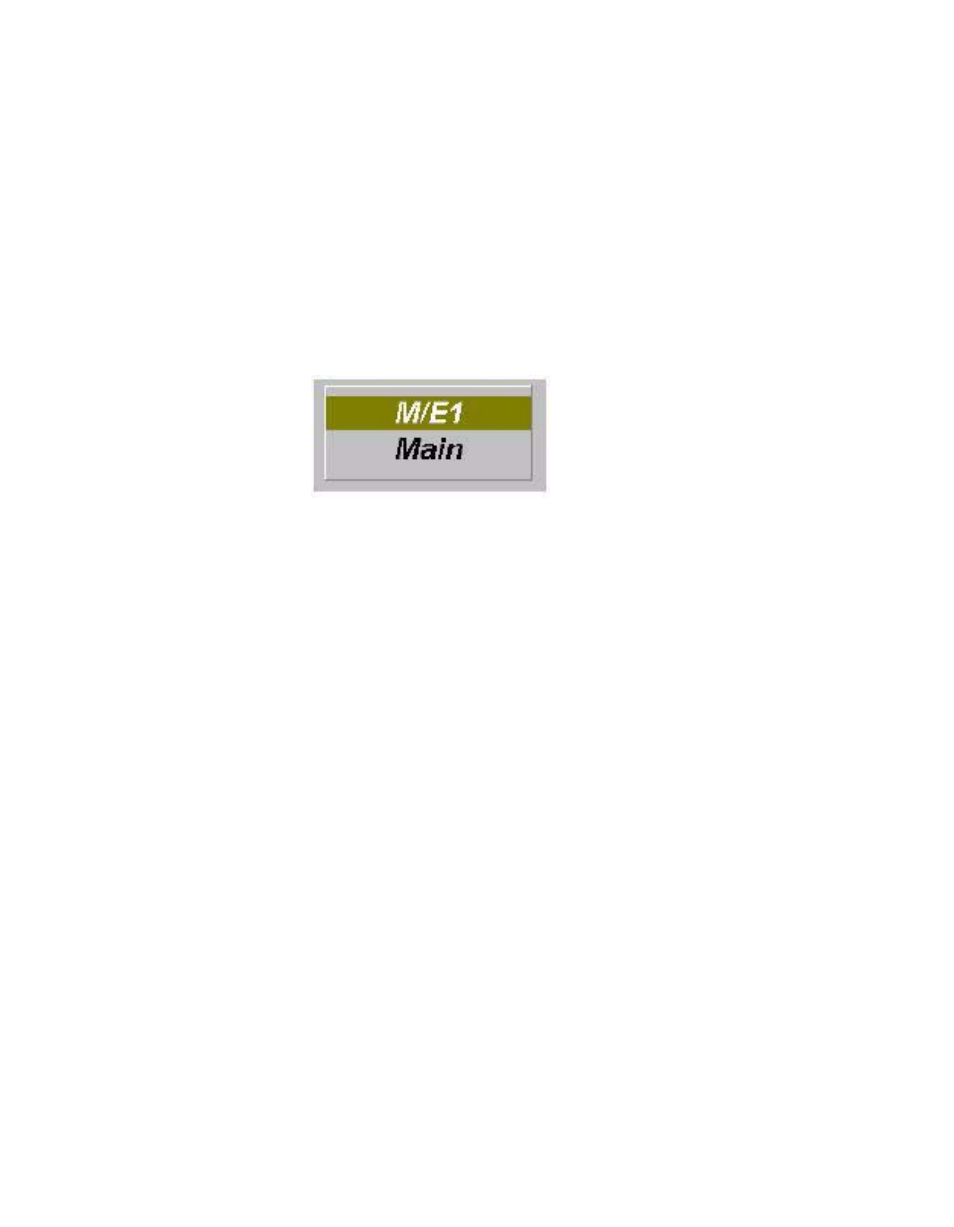

Figure 322. Dialog Title Selection
