Kayak — User Manual 539
Configuration Menus
GPI Index Card
Index card for mainframe GPI settings

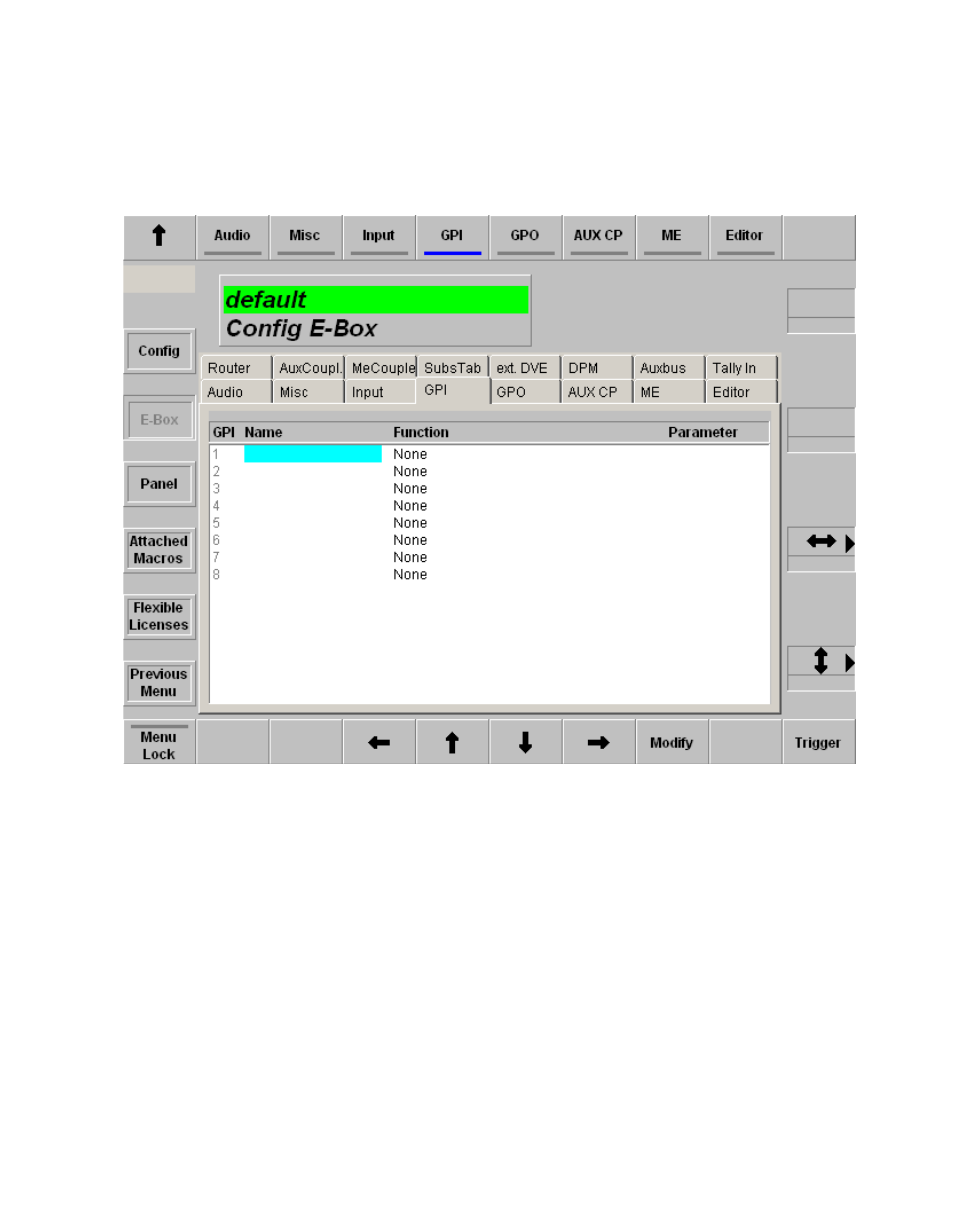

Figure 446. Sidepanel – Index Card GPI
Double-click or pressing the Modify button calls a pop-up menu and in some
cases pop–up lists.
The selected function will be triggered on the edge defined in the Install
menu when button
GPI Enable is On. However, there are some exceptions
where the GPI works as a ”static” input. i.e. actions take place after a
change in the GPI state but the value depends on the GPI’s state after the
change. Also
GPI Enable does not need to be On for these functions.
