Kayak — User Manual 265
DPM Menus
SpecFX Menu
The Transform Engine Spektra Effects option includes Glow, Defocus, and
the new Lighting functions. Glow adds a soft edged variable opacity border
around keys, leaving the original keyed image unmodified. Defocus blurs
the actual keyed image. The new Lighting provides four oppositional
colored light sources that apply a specular appearance to the transformed
picture.

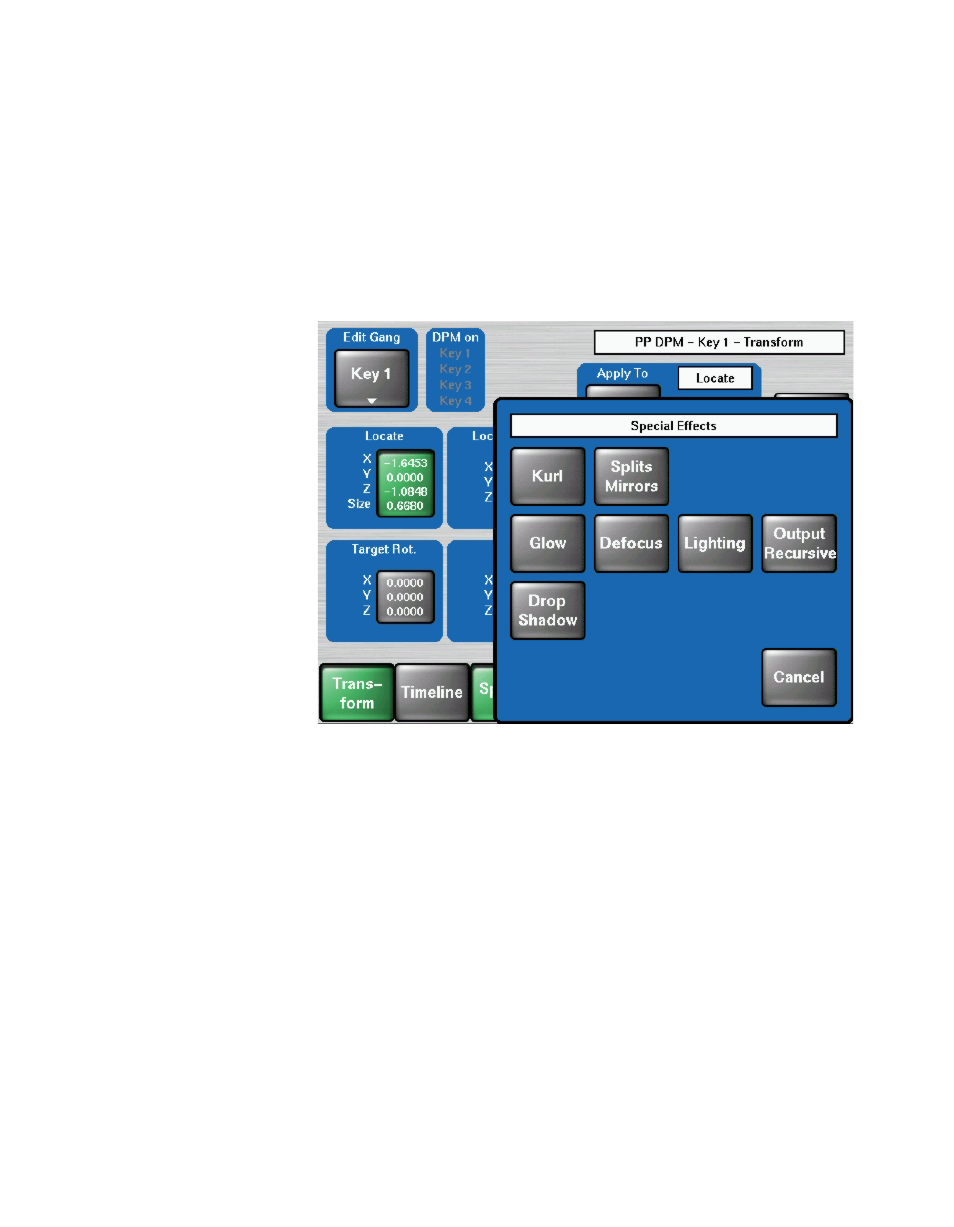

Figure 192. DPM SpecFX Special Effects Mode Selection
SpecFX Kurl Menu
The Kurl effects are grouped into modes, each of which has its own set of
menu panes and related soft knob controls.
The Kurl modes are:
• Page Turn
• Page Roll
• Position/Size Modulation
• Slits
A Digital Picture Manipulator can apply only one set of Kurl mode param-
eters at a time. If you wish to use more than one mode of Kurl effects simul-
taneously on the same video (for example, size modulation of an effect), use
multiple Digital Picture Manipulators with re-entry.
