Offset Transition
Offset Transition can be operated using the SidePanel menu only.
shows the Offset Transition menu in the SidePanel.
Note
The Offset Transi mode can be part of an E-MEM. The settings are stored with
the E-MEM parameters.

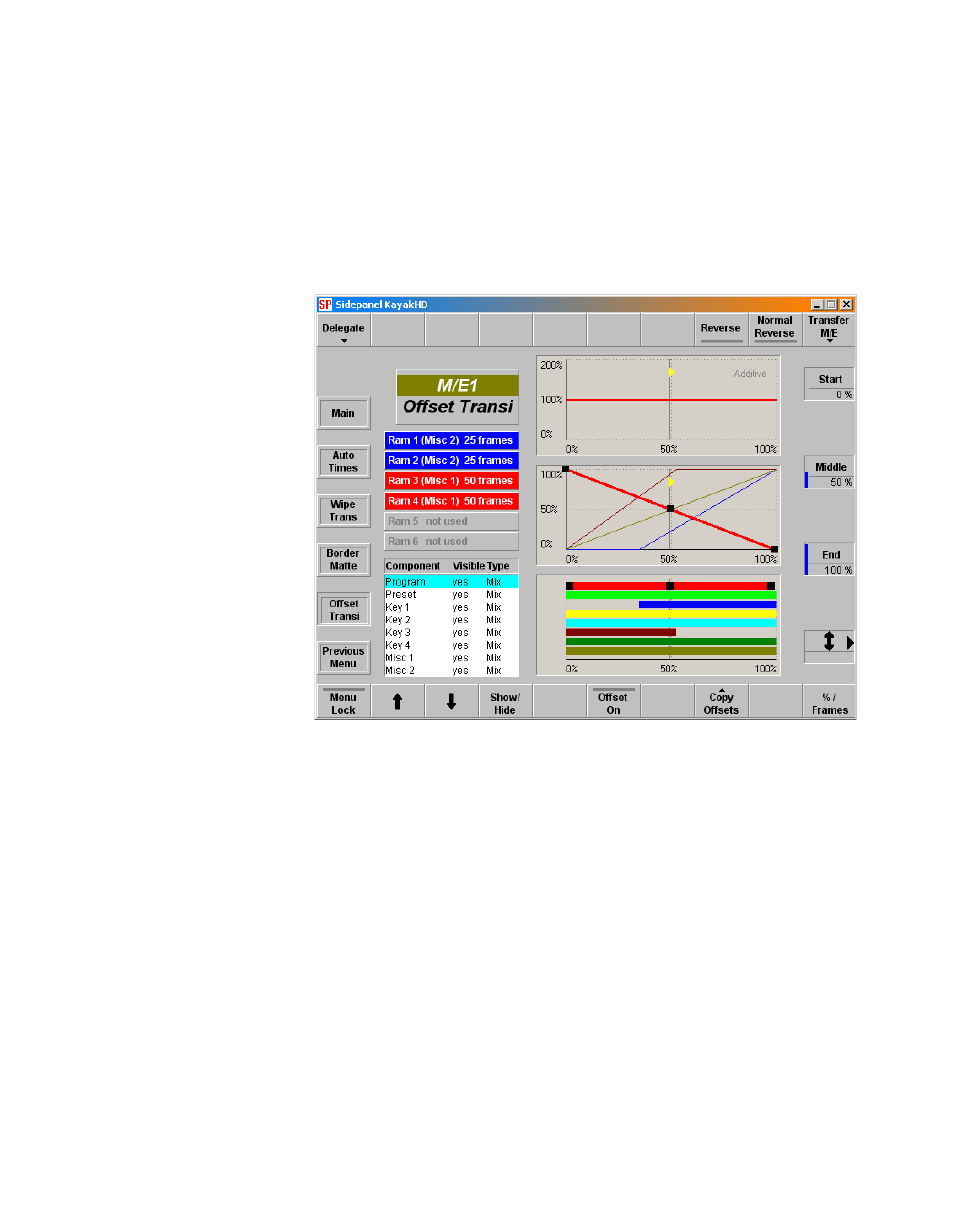

Figure 123. Offset Transition Menu
Transition Graphs
The Offset Transi menu contains three graphs showing transition details:
•
Upper graph:
Signal level curve of background transition (Program
and Preset).
•
Middle graph:
Interactive level curve of each transition component.
•
Lower graph:
Interactive timeline bar of each transition component.
Double-click the timeline bar in order to change the values Start, Middle,
and End. The values can be adjusted with the digipots also.
Component Table
The interactive table shows the transition components. In the Visible
column, you can select whether the non-selected components are visible in
the graphs or not (yes=visible). Double-click to show or hide the compo-
nent curve/bar.
