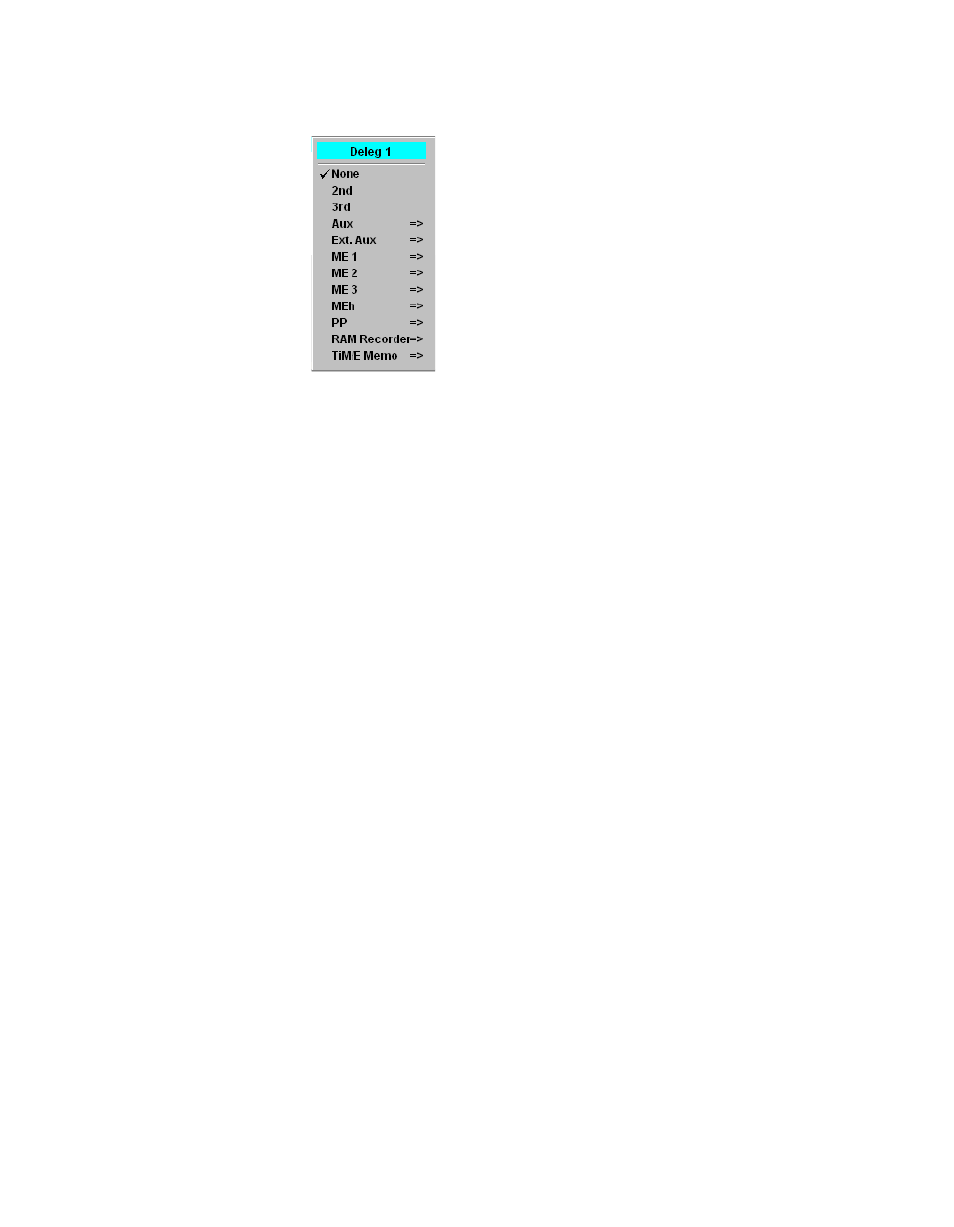

Figure 449. Sidepanel – Modify Programmable Functions
At least one function other than None, 2 nd or 3 rd must be programmed. Oth-
erwise the AUX-CP performs no action at all.
Since the CP-3020 AUX control panel module has only two delegation but-
tons,
Deleg 1 and Deleg 2 may be programmed with 2
nd
and 3
rd
. In this case,
Deleg 3 defines the function of the AUX-CP. Deleg 4..6 can be ignored.
Button Assign:
When the AUX Control Panel is used for crosspoint selection of internal
buses, the sources can be assigned freely to the source selection buttons of
the AUX-CP. To do this, Assign changes the contents of the index card. (See
Figure 450 .)
None No function
2 This button is used as 2
nd
button i.e. shifts the source
selection buttons
3 This button is used as 3 rd button i.e. shifts the source
selection buttons.
AUX
M/E Bus
P/P Bus
These buttons delegate the AUX-CP to the crosspoint
selection for the given bus.
Ext. AUX These buttons delegate the AUX-CP to crosspoint selec-
tion for the given external AUX bus.
RAM Recorder These buttons delegate the AUX-CP to crosspoint selec-
tion for the RAM Recorder channels.
TiM/E Memo n: This button delegates the AUX-CP to register recall for
the given TiM/E Memo system.
