574 Kayak — User Manual
Section 7 — Sidepanel Menu Summaries
GPI Index Card
Index card for panel GPI settings.
Note GPI index card is available if a XtenDD/DD35 control panel is connected to the
Kayak mainframe.

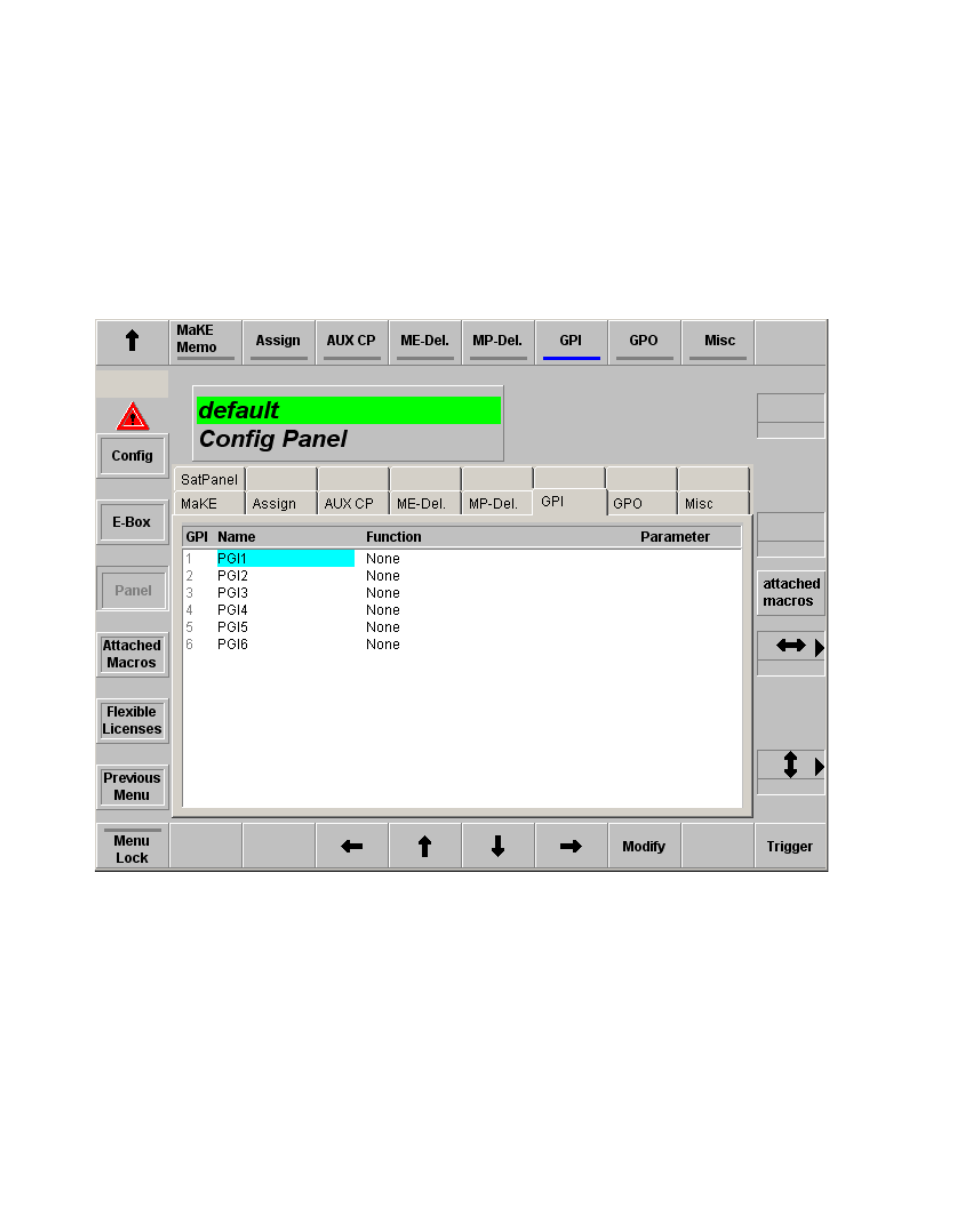

Figure 478. Sidepanel – Index Card GPI
Double-click or pressing the Modify button calls a pop-up menu and in some
cases pop–up lists.
The selected function will be triggered on the edge defined in the Install
menu when button
GPI Enable is On. However, there are some exceptions
where the GPI works as a ”static” input. i.e. actions take place after a
change in the GPI state but the value depends on the GPI’s state after the
change. Also
GPI Enable does not need to be On for these functions.
