Grass Valley Kayak HD v.6.9.3 User Manual
Page 478
478
Kayak — User Manual
Section 7 — Sidepanel Menu Summaries
Inside the green lines same behavior as standard mode. When the mouse is
outside the green border the value will change with a variable speed. The
speed is high at the top and low at the bottom. This mode is recommended
for touch screen control.
Detected Movement
Selection of cursor movement direction horizontal and vertical .

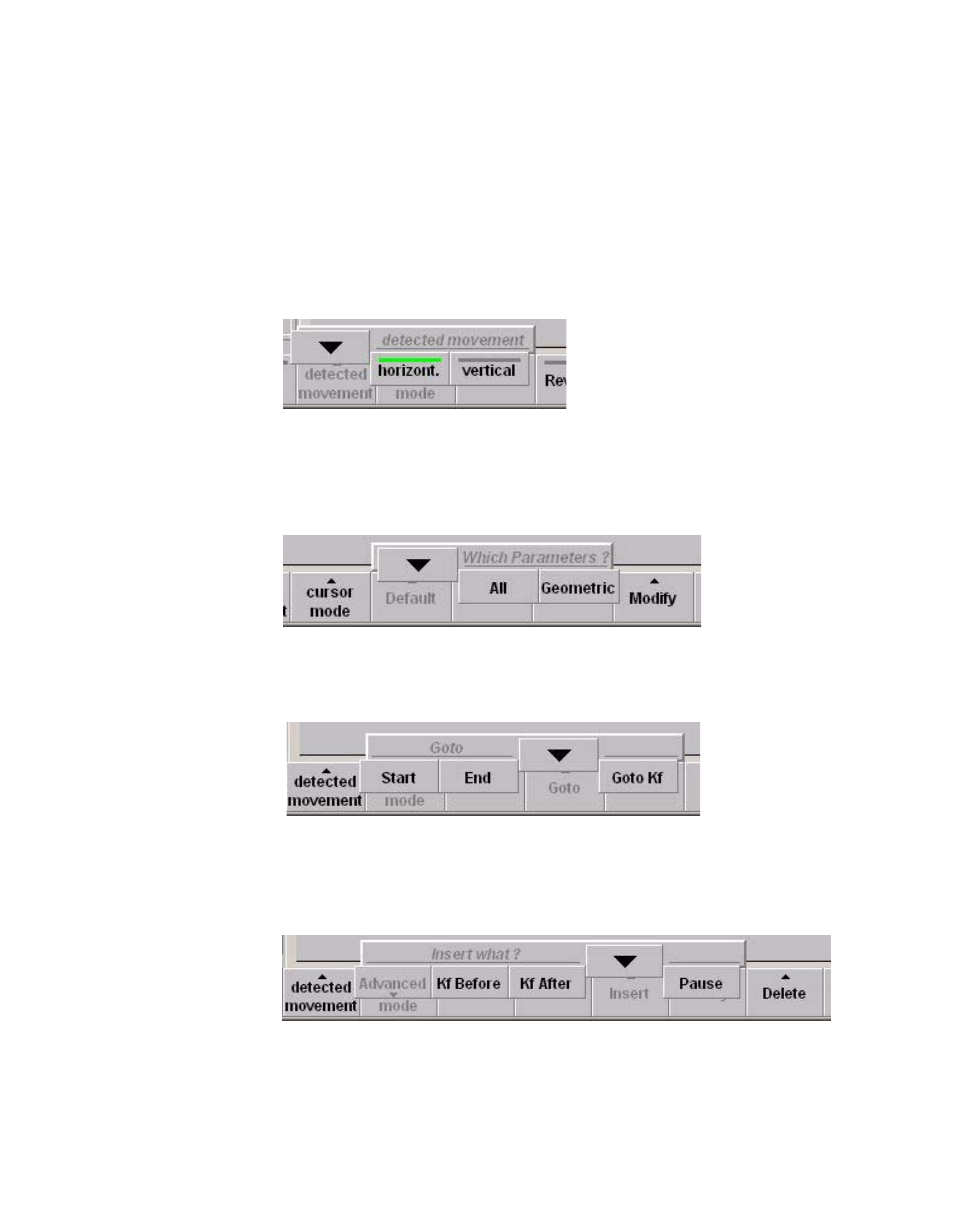

Figure 391. Selection of Cursor Movement
Editing Controls
Default
– Set
All / Geometric
parameter to default values
Figure 392. Editing Controls - Default
Goto
– Navigation inside the timeline.
Goto Start / End / KF (Keyframe nn
)
Figure 393. Editing Controls - GoTo
Insert
– Insert current state as keyframe before (
Kf Before
), or after (
Kf After
), or
insert a
Pause
after the last keyframe.
Figure 394. Editing Controls - Insert
Modify
– Open the modify dialog
