500 Kayak — User Manual
Section 7 — Sidepanel Menu Summaries
Tally Index Card
Index card for selecting Tally ports and setting the MI-3040 box addresses.

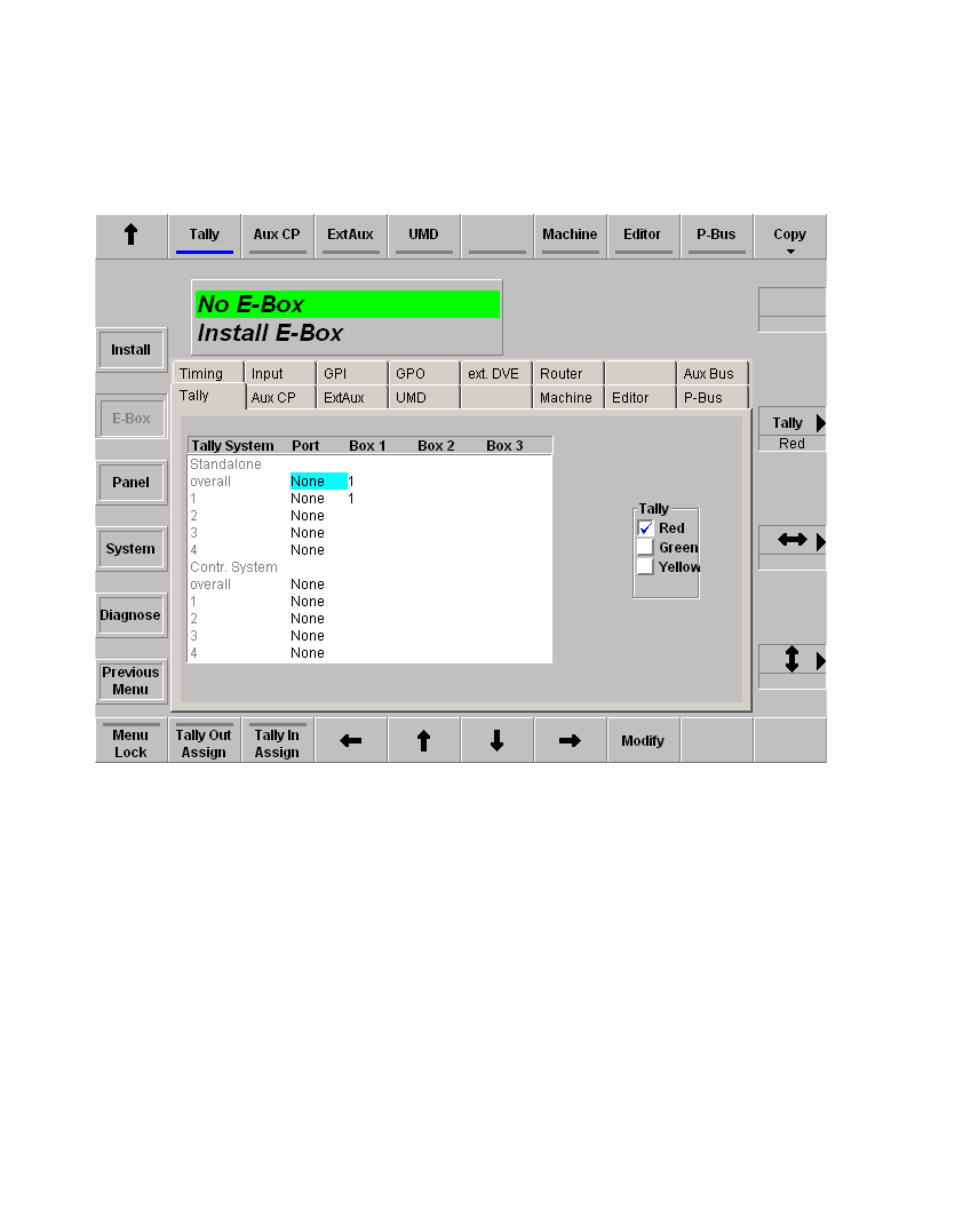

Figure 412. Sidepanel – Index Card Tally
Note Two MI–3040 boxes can be addressed as to be one box with 80bits if they
have the same MPK address and if they are installed in neighbor columns in
the table above. Within a tally channel (Red, Green, Yellow) same box
addresses may be used. However, a box address cannot be used in different
colors. For details refer to the section on Tally Signaling in the Installation and
Service Manual.
