Kayak — User Manual
Section 7 — Sidepanel Menu Summaries
The popup of each machine provides the following selection possibilities:
It is only possible to trigger those machines that are activated in the
Install /
Pbus
menu. The trigger will then be performed by the button with a similar
name. It then reaches all machines with the trigger name listed below.

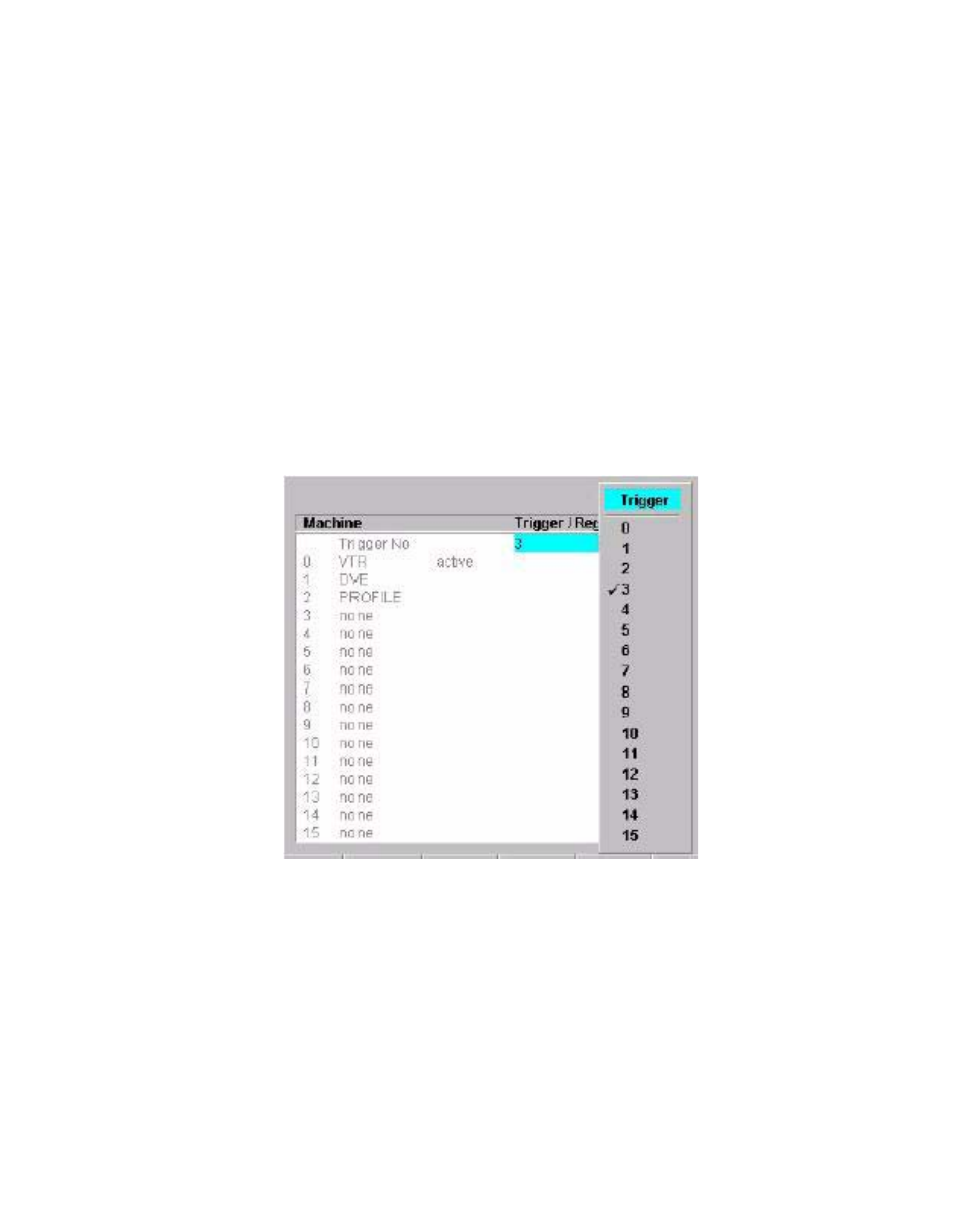

Figure 376. Remote P-Bus Trigger Function Buttons
Remote P-Bus / Register
Sub-dialog of the trigger. Register are device-specific states. These registers
can be read out or written in just as the trigger for a defined number of
machines. The concerned machines are indicated in the field Trigger/Reg-
ister where only Recall / No Recall can be selected.
No Command:
This machine does not get any trigger
Default Command:
This machine gets the trigger number being in the 1st line
All other lines:
Here, each trigger is specified with the name being pro-
vided for this machine. A selection in this area also
changes the general trigger number in the 1st line which
then is applicable for all machines.
