Kameleon HD Instruction Manual

33

Initial Configuration Process Overview

The KAM-HDD-PA (

Figure 18

) and KAM- HDD-FS (

Figure 19

) module

links are shown for available web pages when an HD input type (HD 59.94
or HD 50) is selected (left) or an SD input (right).

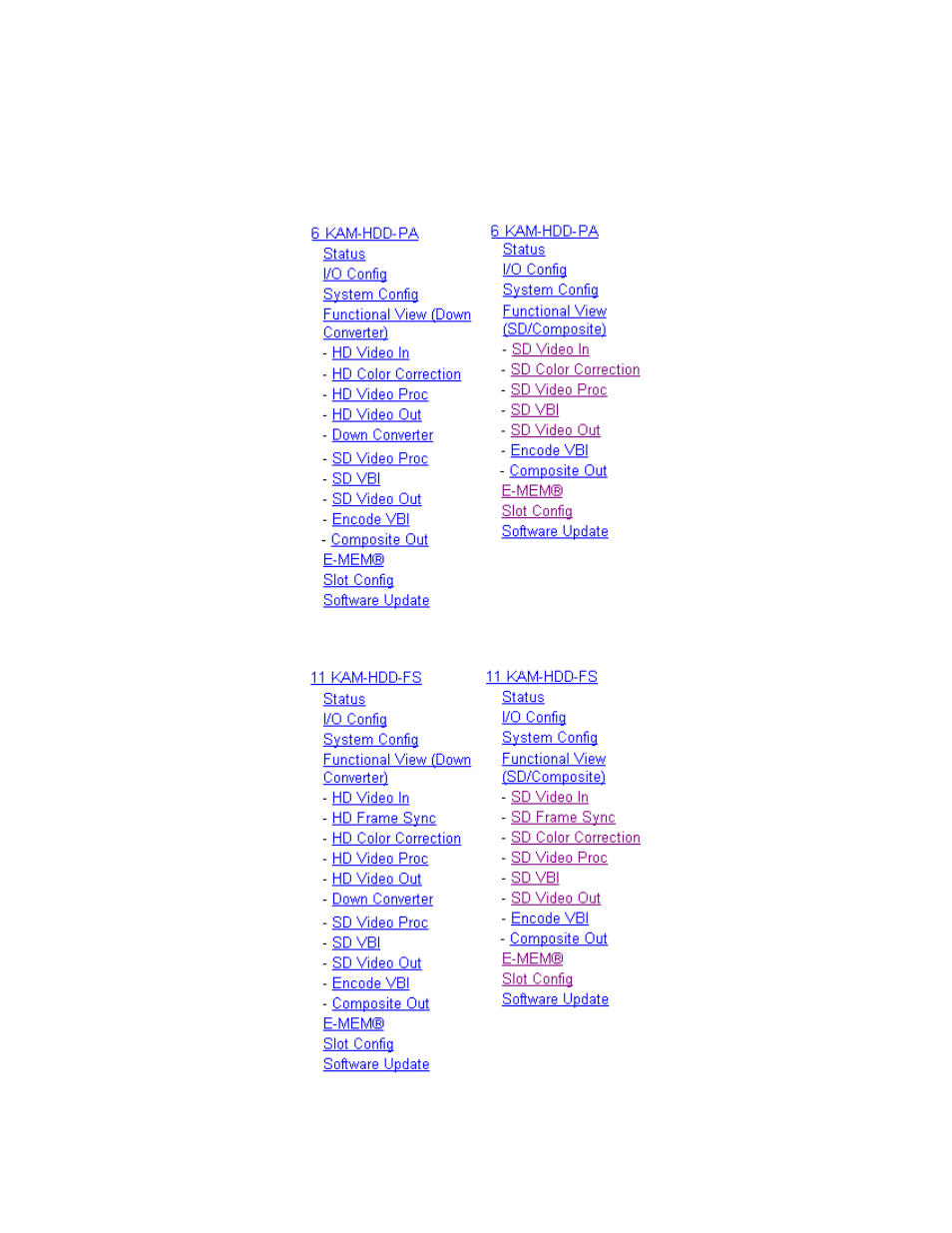

Figure 18. KAM-HDD-PA Web Page Links

Figure 19. KAM-HDD-FS Web Page Links
