KAM-ENC-2AES Instruction Manual 9
Installation
Module Placement in the 2000T3NG Kameleon Frame
There are twelve slot locations in both the front and rear of a 3 RU frame to
accommodate 2000 and Kameleon Series media modules (audio/video
signal handling modules). The Kameleon media modules consist of a
two-module set with a front processing media module and a passive rear
module that can be plugged into any of the 12 frame slot pairs. The rear
modules provide the input and output interface connectors.
Installing the Front and Rear Modules
To install a KAM-ENC-2AES module set in the 2000 Series frame:
1. Locate a vacant slot in the rear of the 3 RU frame ( Figure 1 ).

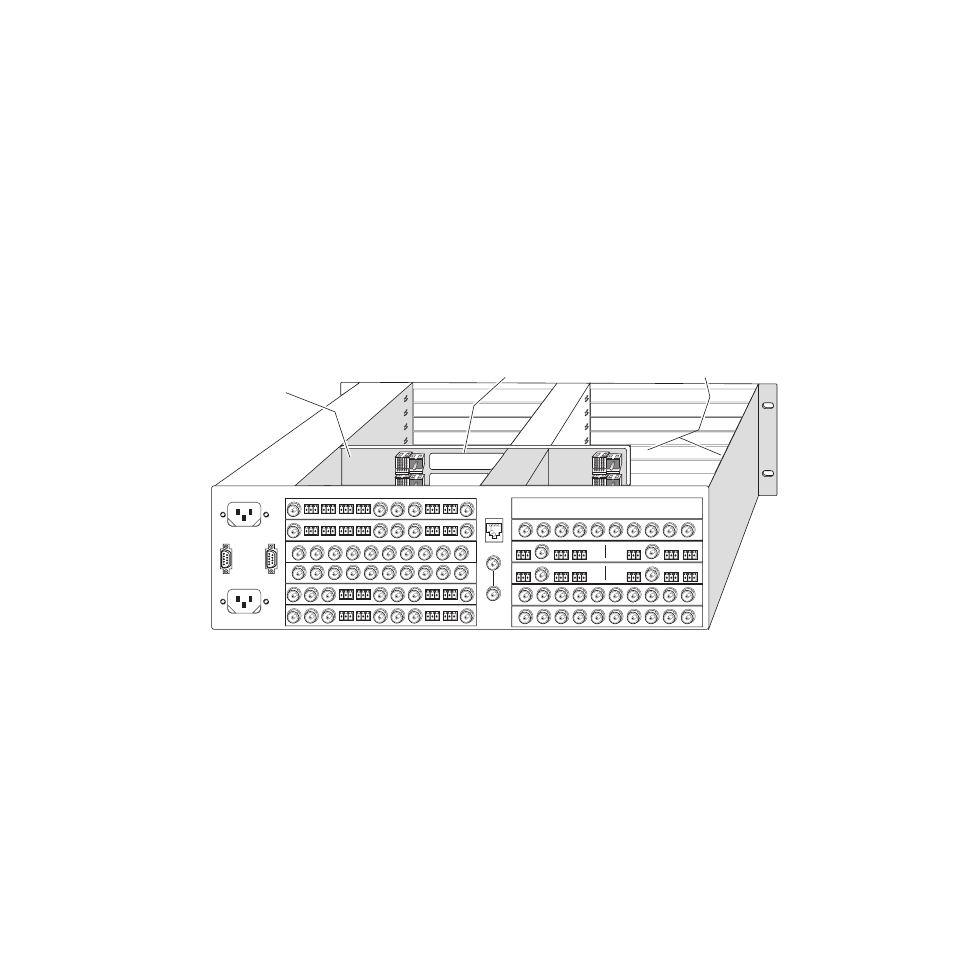

Figure 1. 2000T3NG Kameleon Frame Rear View
Mid-frame
motherboard
with power and
communication buses
Front-rear module
direct connection
cutout
Open frame area
for front-rear module
direct connection
Six rear
module slots
Network and reference
input connections
Six rear
module slots
8346_01
