KAM-ENC-2AES Instruction Manual

21

Configuration and Adjustments

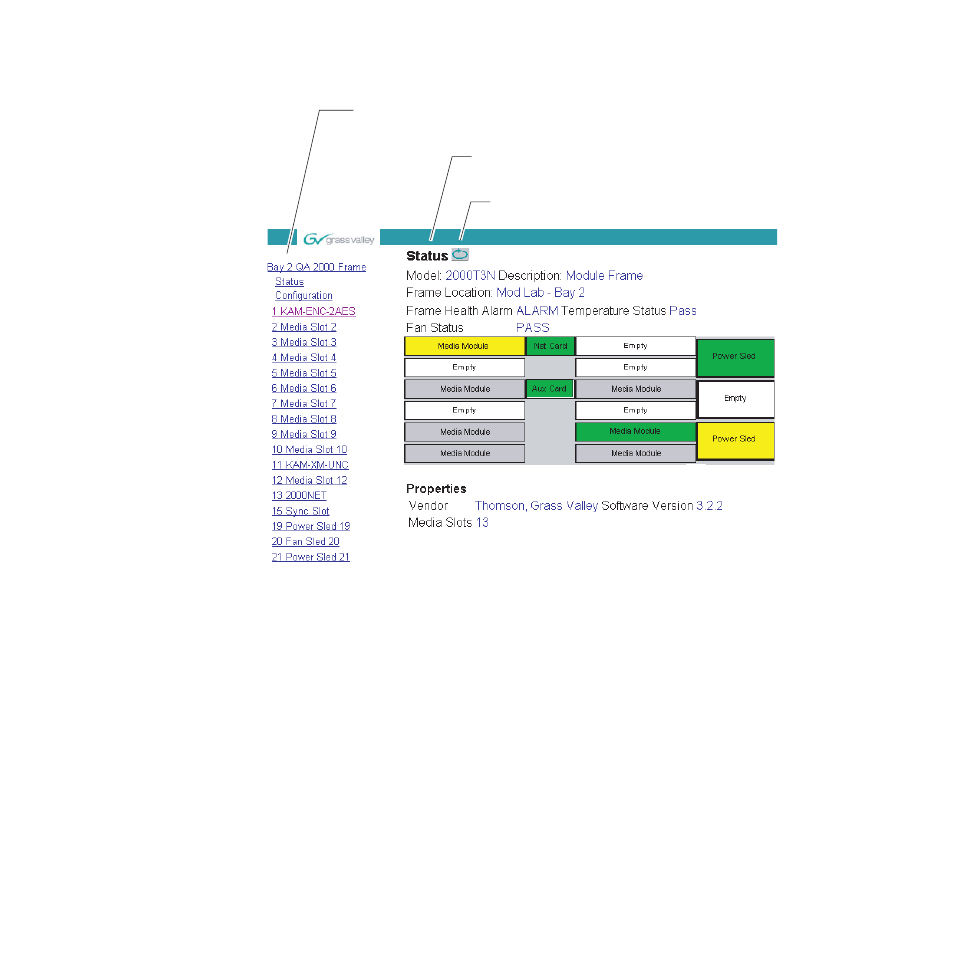

Figure 8. 2000NET GUI

8355_02

The Links section lists the frame and its current modules. The selected link's Status
page is first displayed and the sub-list of links for the selection is opened. The sub-list
allows you to select a particular information page for the selected device.

Content display section displays the information page
for the selected frame or module (frame slot icons are also
active links).

Refresh button for manual
update of page
