12 KAM-ENC-2AES Instruction Manual
Installation
Cabling
All cabling to the module is done on the KAM-AES-R passive rear module
shown in
Figure 5 .
SDI Video In
Connect the SDI video to be encoded to connector J11, labeled V1 .
AES Audio Inputs
Two unbalanced AES audio inputs are available at connectors J9 and J10 or
two balanced AES audio inputs are available at connectors J7 and J8. Input
type must be selected as explained on the
Input/Output Configuration Web
Page on page 28 . Connect balanced or unbalanced AES audio to the correct
type of audio connectors.
AES Audio Outputs
Two AES audio outputs are available at unbalanced BNC connectors J4 and
J5 or balanced 3-pin connectors J2 and J3. The choice between balanced or
unbalanced outputs must be made on the
Input/Output Configuration Web
Page on page 28 .
Connect balanced audio to the 3-pin connector as shown in the connector
pinout.
Composite Video Out
The Composite video is output at BNC connector J6, labeled CVO .

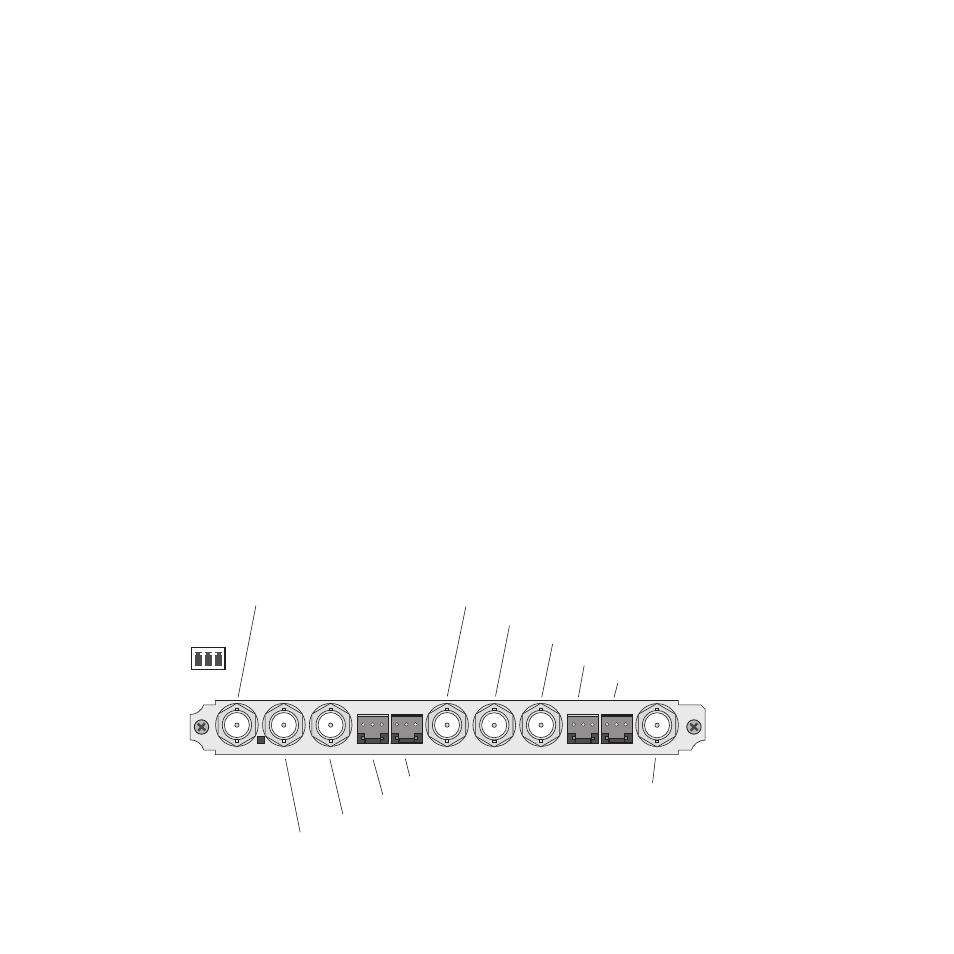

Figure 5. KAM-AES-R Input/Output Connectors
8355_01
CVO SD0 AES
1
SIG J10 J9 J6 J5 J4 J3 J1
SIG
J2
2900
PRM-7
J11
AES
2
AES 1 AES 2
J8 J7
AES
3
AES
4
AES 3 AES 4
J11 VI, SDI Video In
Connector
pinout
+ – G
J6 CVO, Composite Output
J1 SDO (Not Used)
J2 AES2, Balanced Audio Output
J3 AES1, Balanced Audio Output
J4 AES2, Unbalanced Audio Output
J5 AES1, Unbalanced Audio Output
J10 AES 1, Unbalanced Audio In
J9 AES 2 Unbalanced Audio In
J8 AES 1, Balanced Audio In
J7 AES 2, Balanced Audio In
