44

KAM-ENC-2AES Instruction Manual

KAM-ENC-2AES Links and Web Pages

VBI Encode For Composite Output

Use the VBI Encode web page (

Figure 25

for 525,

Figure 26 on page 45

for

625 line rate) to configure the VBI and Data Line encoding for the com-
posite output signal.

The currently detected line rate will be reported. Use the View Selection to
view the web page at the correct line rate with the

525

or

625

radio button.

This web page allows you to do the following on a line-by-line basis:

Remove black level setup (in NTSC or PAL-M video)

Blank existing VBI and Data Line information

You may also apply clips to all VBI lines by checking the

Apply clips to VBI

checkbox.

Note

The data lines not reserved for carrying data on the Video Input Select web
page will appear greyed out. See

Advanced VBI Configuration on page 36

.

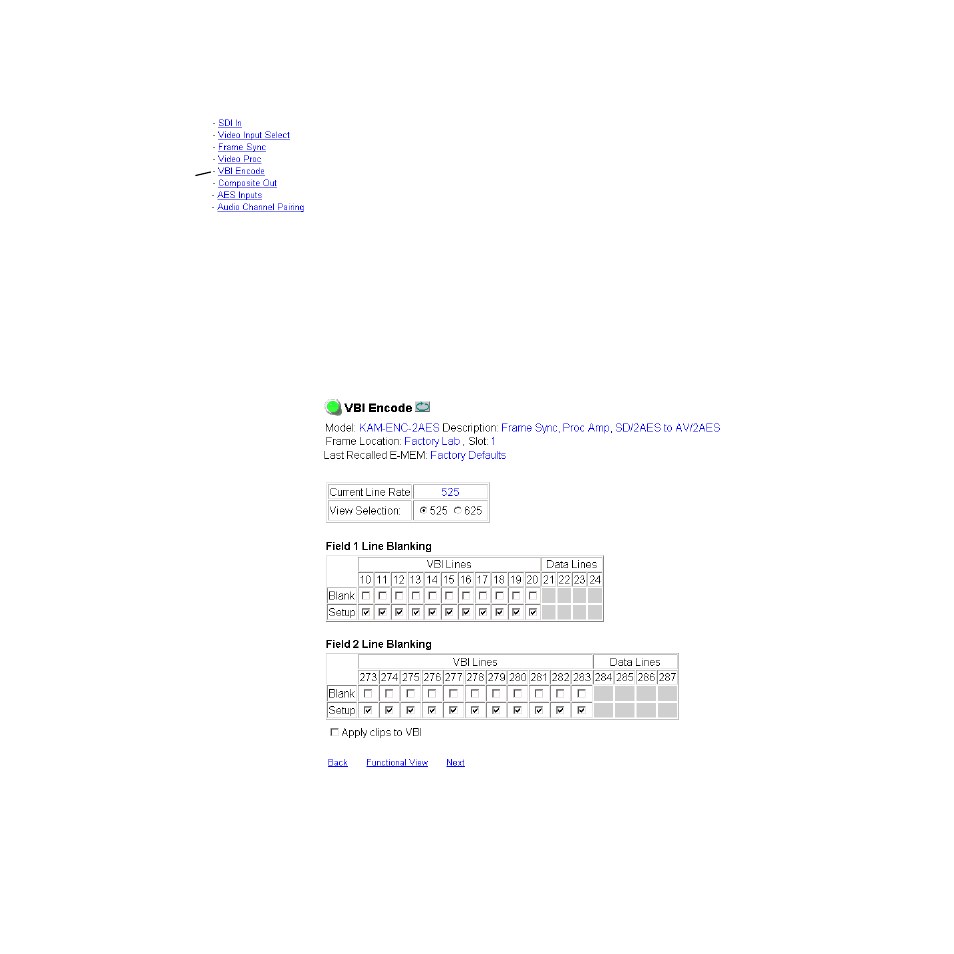

Figure 25. VBI Encode Web Page – 525 Line Rate
