KAM-ENC-2AES Instruction Manual

55

KAM-ENC-2AES Links and Web Pages

AES Outputs Web Page

Use the AES Outputs web page (

Figure 33

) to do the following:

Select audio pairs for output to the assigned audio connectors (refer to

Input/Output Configuration Web Page on page 28

for connector informa-

tion and audio signal name assignment).

Status reporting on this page will show the following:

Whether

Unbalanced

or

Balanced

audio outputs are enabled (set on

Input/Output Configuration Web Page on page 28

),

Output Sample Rate for the AES outputs,

Output resolution as selected on the

Audio Processing Web Page on

page 53

. A link to this page is provided.

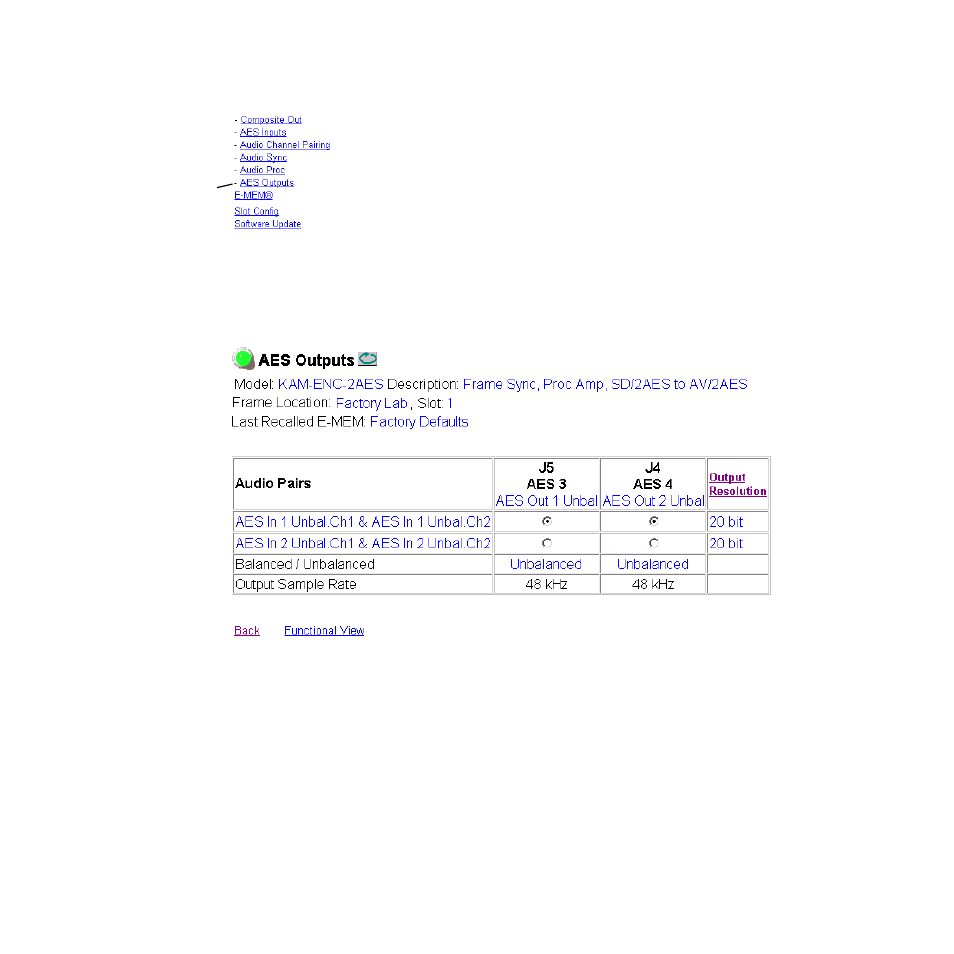

Figure 33. AES Outputs Web Page

Use
this
link
