34

KAM-ENC-2AES Instruction Manual

KAM-ENC-2AES Links and Web Pages

Video Input Select Web Page

Use the Video Input Select web page (

Figure 17

) to:

Configure input video line rate,

Enable or disable Loss of Signal reporting for the input signal and
frame reference to the Status web page and SNMP monitoring (refer to
the 2000NET manual for SNMP information),

Enable or disable the SDI Error status warning,

Configure Vertical Blanking Interval (in Advanced mode), and

Select the output timing reference.

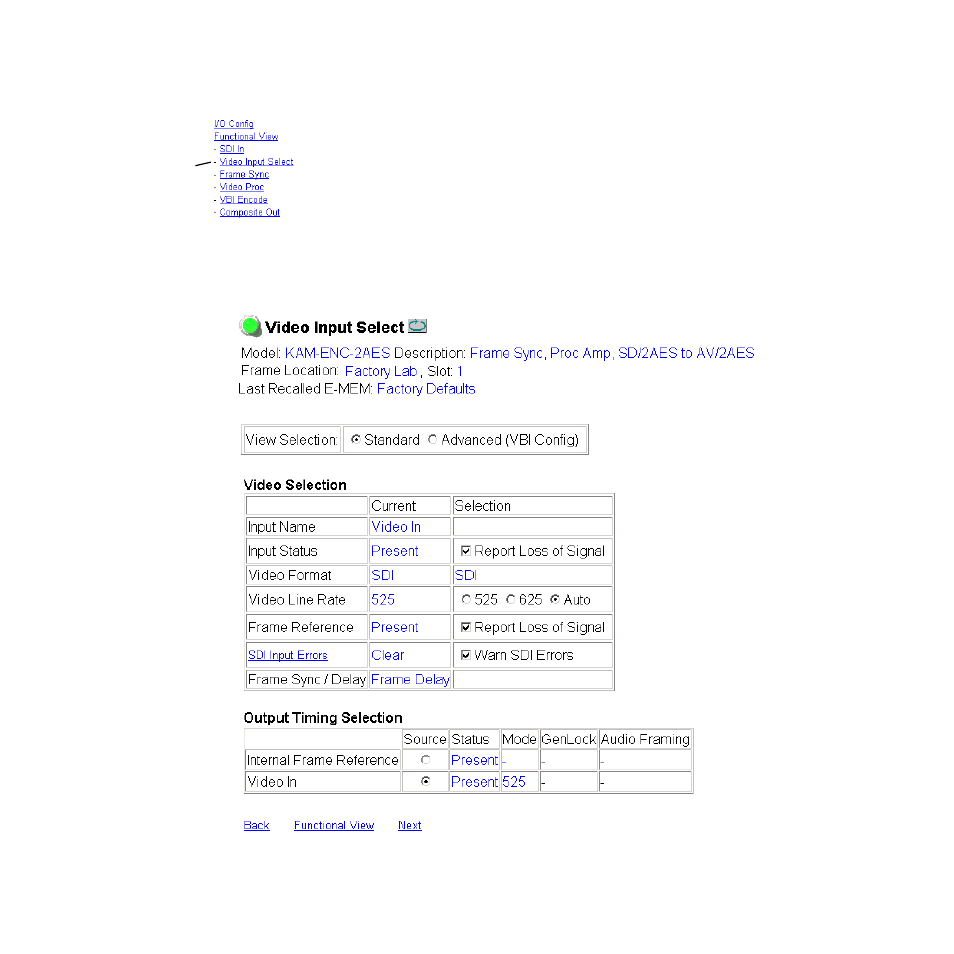

Figure 17. Video Input Select Web Page – Standard View
