KAM-ENC-2AES Instruction Manual

11

Installation

5.

Locate the corresponding front media slot (1 -12) in the frame. The 3 RU
frame front view is illustrated in

Figure 3

.

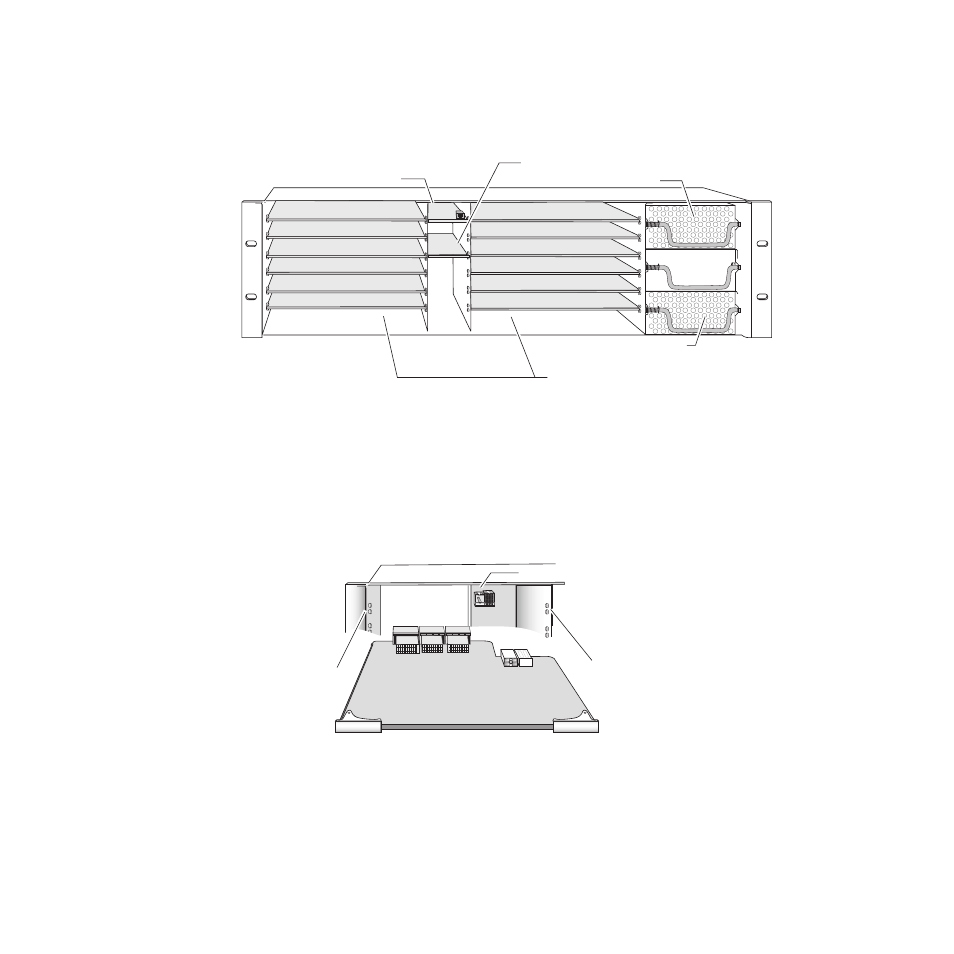

Figure 3. 2000T3NG Kameleon Frame, Front Slots

6.

With the component side up, insert the processing module in the
corresponding front slot (see

Figure 4

).

7.

Verify that the module connector seats properly against the midplane
and rear module connector.

8.

Press firmly on both ejector tabs to seat the module.

Figure 4. Installing Front Media Module

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

(10)

(11)

(12)

(15)

(13)

(1)

8173-04

Network Slot (13)

Reference Distribution Slot (15)

Main Power Supply Slot (19)

Secondary Power

Supply Slot (21)

Front Media Slots (1-12)

Fan Sled

Slot (20)

Alignment post and receptacle

8343_10

2000 Frame (front view)

Board edge

guides

Board edge

guides
