Configuration and Monitoring
Note The physical appearance of the menu displays on the web pages shown in
this manual represent the use of a particular platform, browser and version
of 8900NET module software. They are provided for reference only. Displays
will differ depending on the type of platform and browser you are using and
the version of the 8900NET software installed in your system. The only rec-
ommended browser for optimum performance is the latest version of
Internet Explorer. This manual reflects 8900NET software version 4.3.0, the
latest release recommended.
For information on status and fault monitoring and reporting shown on the
Status page, refer to Status Monitoring
on page 56 .

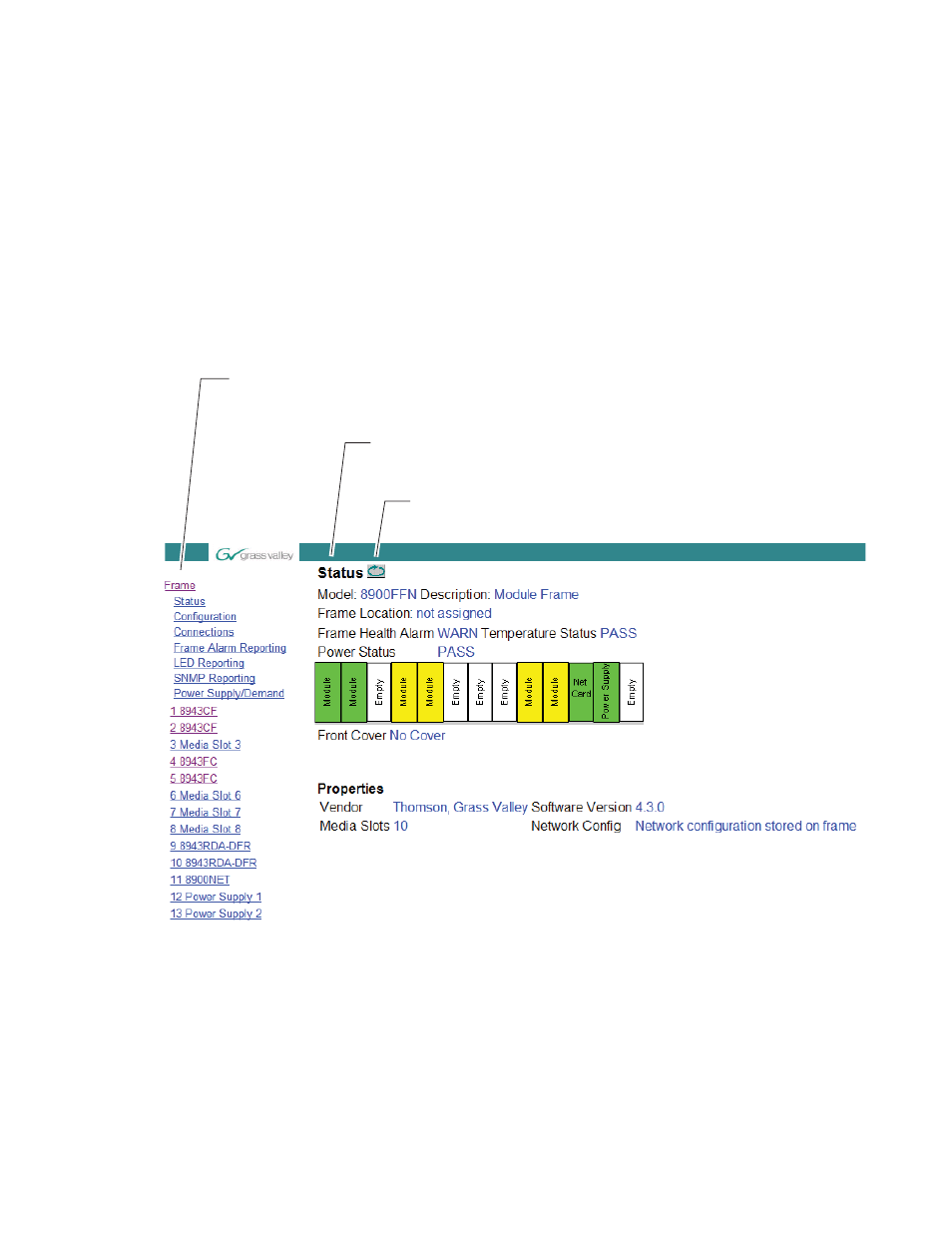

Figure 28. GeckoFlex Frame Status Page
8772_06
r0
The Links section lists the frame and its current modules. The selected link's Status
page is first displayed and the sub-list of links for the selection is opened. The sub-list
allows you to select a particular information page for the selected device.
Content display section displays the information page
for the selected frame or module (frame slot icons are also
active links).
Refresh button for manual
update of page
