Fiber Optic SFP Device Installation
Two optional dual channel CWDM transmitter SFP devices can be installed
on an 8943CF module. Both are installed on the front of the module circuit
board. The type of SFP device depends on the application of the module
and the 8939FCA or 8939FCB module it will be feeding. Refer to
Table 1 on
page 10 for a list of available optional fiber optic SFP devices.
The optional strap-mount SFP Fiber Optic kit ( Figure 3 ) for GeckoFlex
fiber-ready modules includes:
• One Strap Mount Fiber Optic SFP device (labeled for type) with dust
covers
• Mounting bracket for SFP device installation
• Fiber cable assembly (with dust covers) for connecting the SFP device
to front module LC adapter

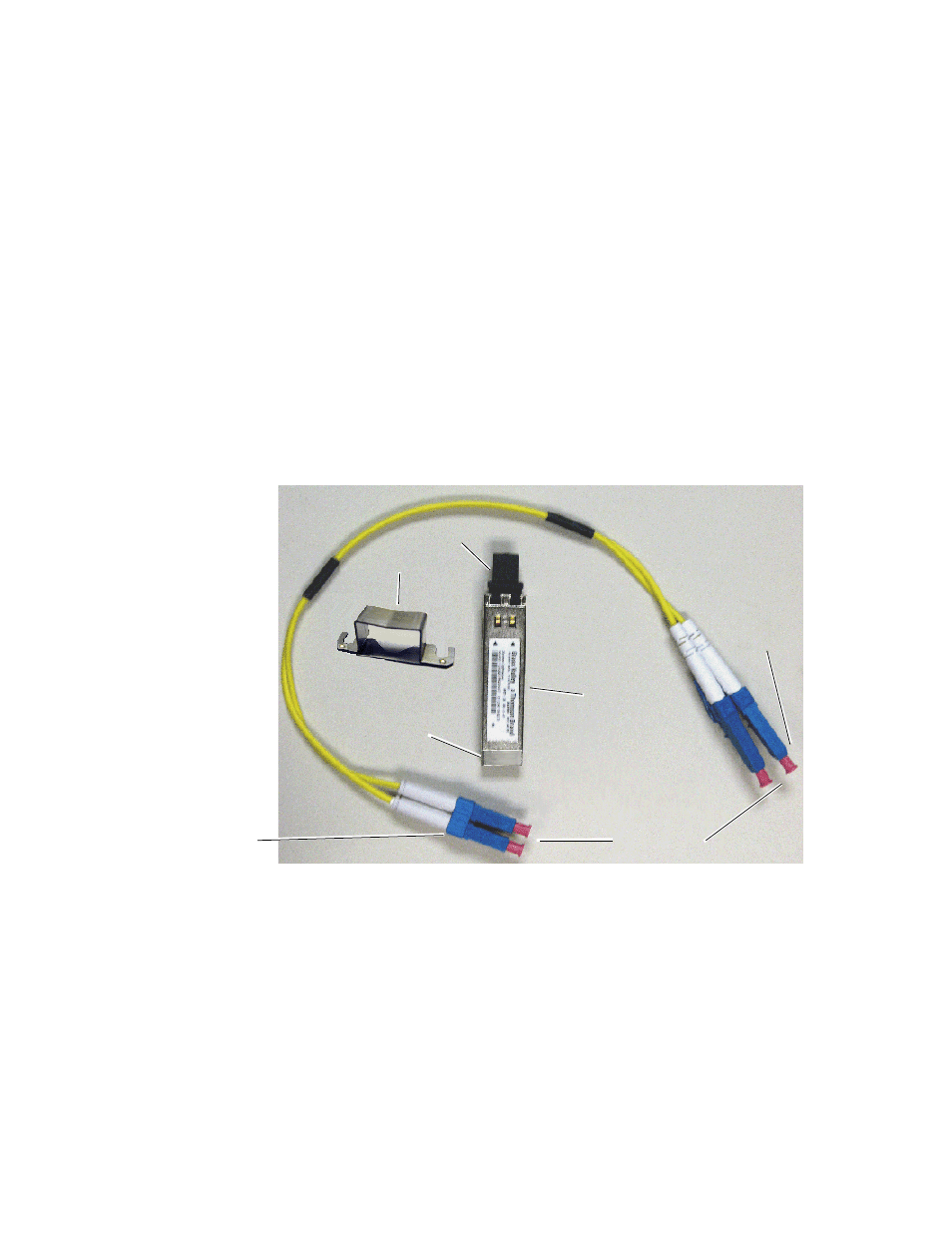

Figure 3. SFP SFP Device Kit
Fiber Optic Cleaning Requirement
Before making any fiber optic cable mating connections in the SFP device
or cabling and after every de-mating cycle, use an industry standard fiber
optic cleaning kit, including oil-free compressed air, to clean the fiber con-
nectors and the connectorized fiber end faces. This helps ensure optimum
performance of the fiber optic interface. Industry standard fiber optic
cleaning kits can be purchased on the web and in electronics stores.
Ferrule covers
Duplex end connectors
Simplex end
Mounting Bracket
SFP device dust cover
SFP Device Label
SCA-2 Connector
connectors
