Configuration and Monitoring

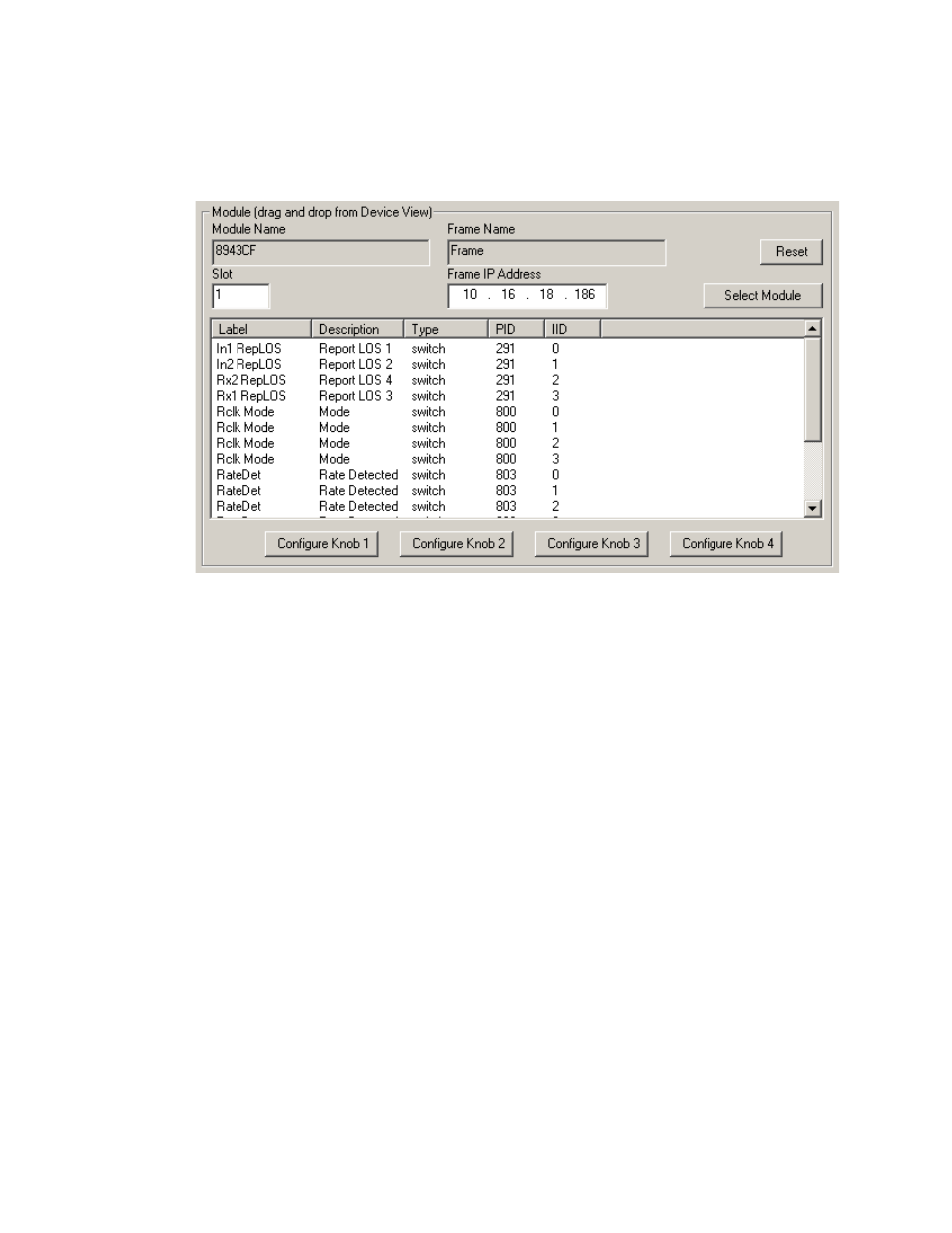

An example of the Newton Configurator is shown in Figure 27 . Newton
Control Panel parameters are listed in Table 8 on page 61 .
Figure 27. Newton Configurator Example
Web Browser Interface
The web browser interface provides a graphical representation of module
configuration and monitoring.
Use of the web interface offers the following considerations (when appli-
cable for the module):
• Provides complete access to all module status and configuration func-
tions, including factory parameter default recalls, slot configuration,
and SNMP monitoring controls.
• Web access will require some normal network time delays for pro-
cessing of information.
• Configuration parameter changes may require pressing Apply button or
Enter , upload processing time, and a manual screen refresh to become
effective.
• Web interface recommended for setting up module and reporting
status for SNMP and monitoring.
Refer to the Frame Status page shown in Figure 28 on page 41 . The modules
can be addressed by clicking either on a specific module icon in the frame
status display or on a module name or slot number in the link list on the
left.
