8943CF — Instruction Manual 17
Installation
Fiber Channel 1 and 2 SFP Device and Fiber Cable Installation
Note Before making any fiber connections, refer to the Fiber Optic Cleaning
Requirement
on page 14 .
After preparing the SFP devices for installation, install the transmitter SFP
device you wish to use for the Fiber Channel 1 and Fiber Channel 2 outputs
as follows:
Note This example uses a dual fiber transmitter with 1610nm (F1) and
1590nm (F2) as shown in Figure 8 .
1. Remove the black rubber dust cover from the SFP device and clean the
fiber faces of both the SFP device and connector J6 as described in Fiber
Optic Cleaning Requirement
on page 14 .
2. Align the SFP device with the right angle bottom SCA-2 connector (J6)
and the mounting screws on the 8943CF module (
Figure 8 ).
3. Loosen the two screws slightly (do not remove them completely) with
a torx screwdriver so the mounting bracket straps can slide under the
screws.
4. Slide the SFP device towards the SCA-2 connector so the electrical
connector on the SFP device engages with the SCA-2 connector until
the connector is completely covered and the straps are underneath the
two screws.
5. Tighten the screws to secure the SFP device to the front module.

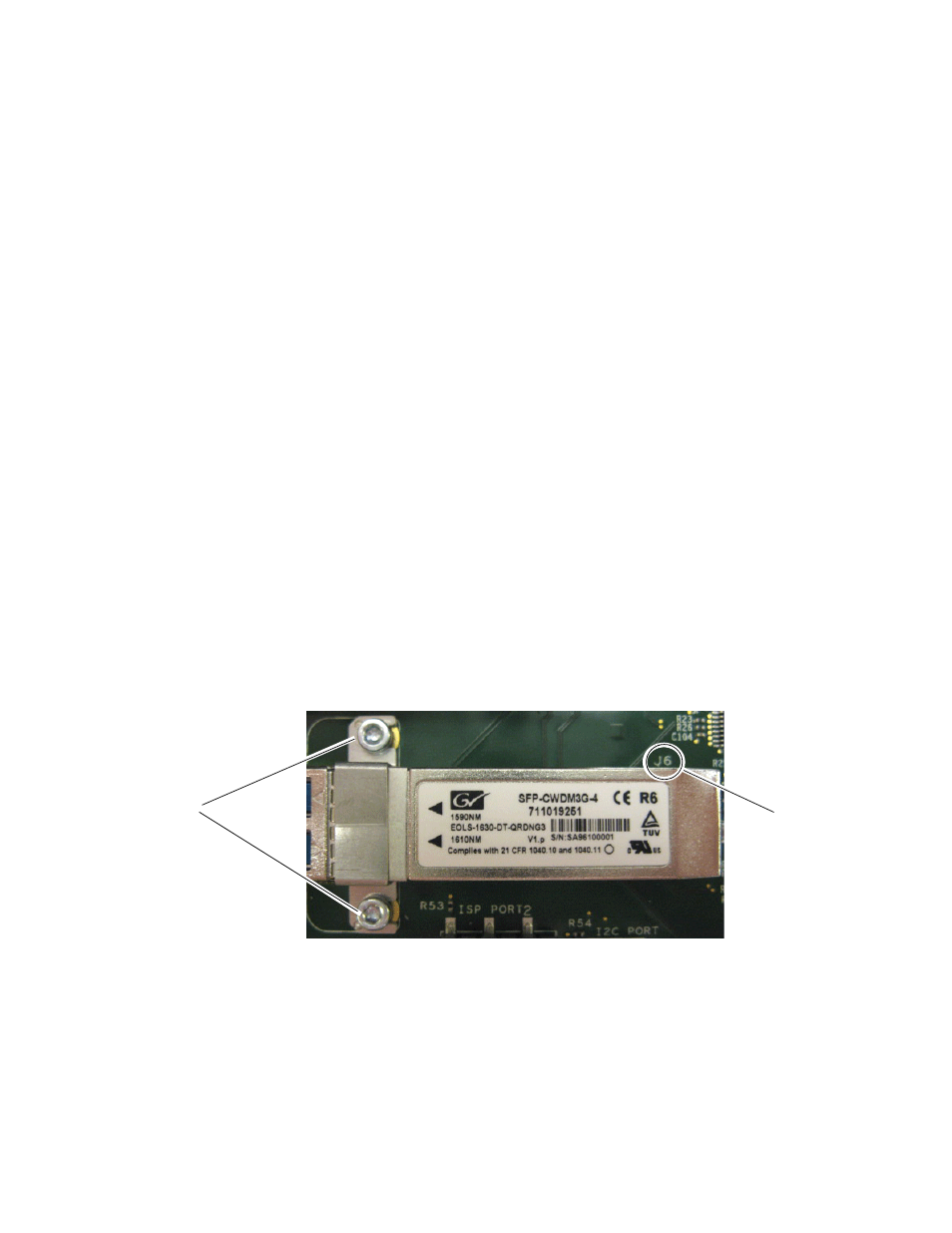

Figure 8. Install F1 and F2 SFP Devices
Now install the fiber cable assembly from the SFP device to the rear con-
nector as described below.
1. Remove the dust covers from the fiber cable assembly connectors to
expose the LC ferrules (the ends of the fiber optic cable).
Slide bracket straps
under screws
and tighten. SCA-2
connector, J6
