Figure 67, Conf – H3C Technologies H3C Intelligent Management Center User Manual

Page 77

background image

70

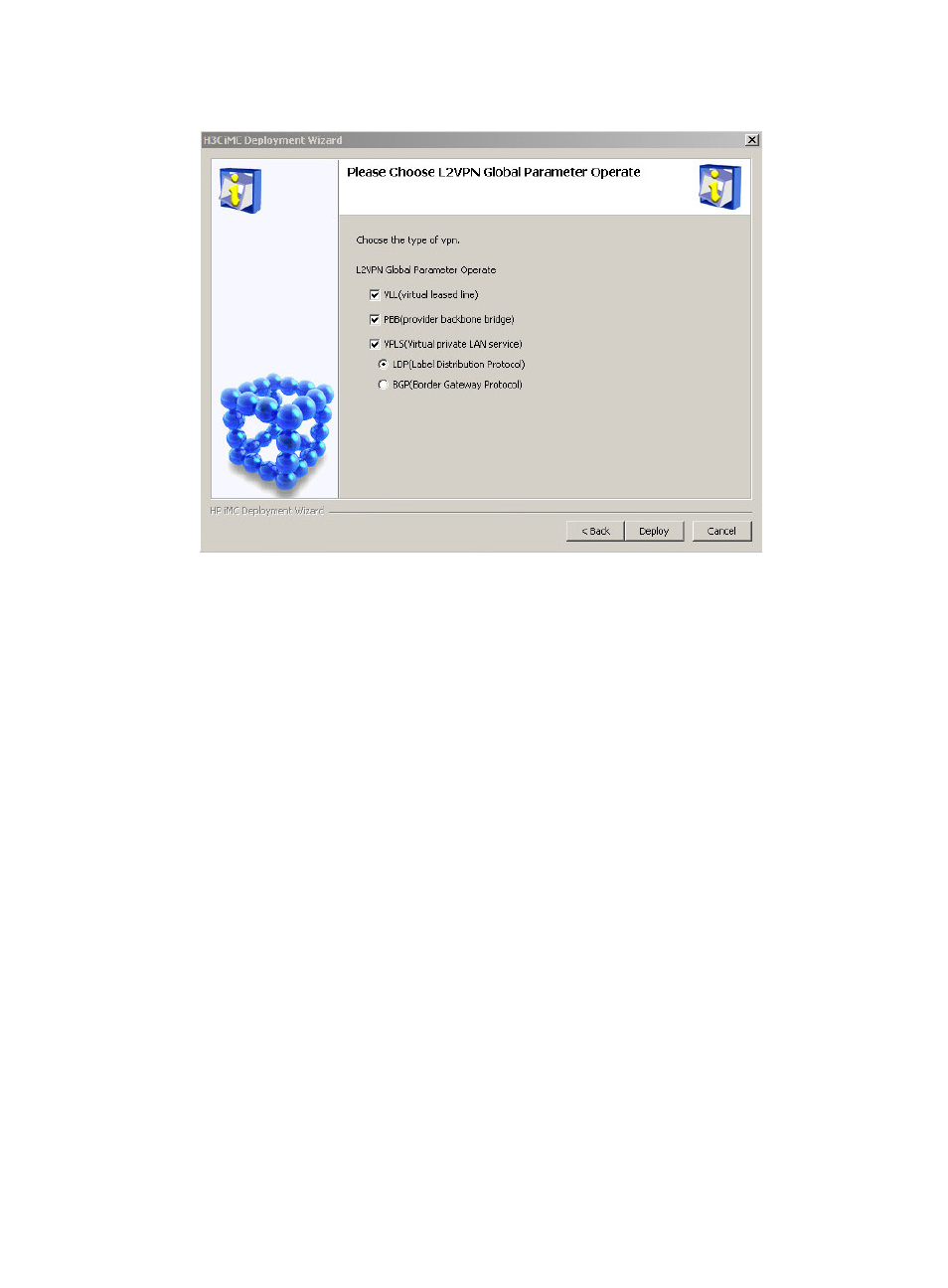

Figure 67 Please Choose L2VPN Global Parameter Operate

8.

Click Deploy.
After the deployment is complete, the Batch deploy result dialog box appears.

9.

Click OK.

10.

Start IMC on the master server:

a.

Start the Intelligent Deployment Monitoring Agent:

−

On Windows, select Start > All Programs > H3C Intelligent Management Center > H3C
Deployment Monitoring Agent.

−

On Linux, run the dma.sh script in the /deploy directory of the IMC installation path.

b.

On the Monitor tab, click Start IMC.
A confirmation dialog box appears.

c.

Click OK to start the IMC service.
