48

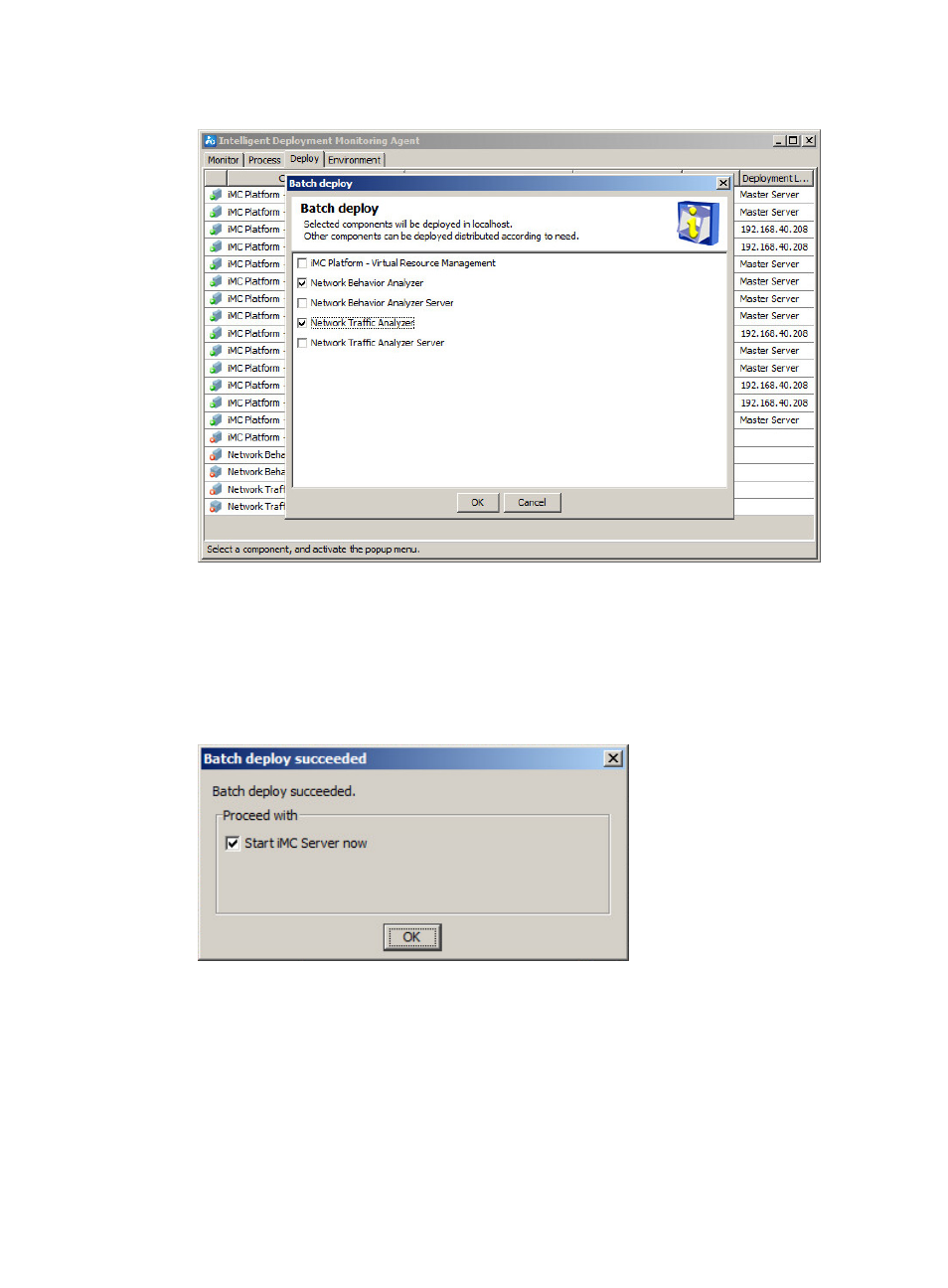

Figure 36 Batch deploy

2.

Select the NTA subcomponents you want to deploy on the master server. In this example, select

Network Traffic Analyzer and Network Behavior Analyzer.

3.

Click OK to start deploying the components.
After the deployment is complete, the Batch deploy succeeded window appears, as shown
in

Figure 37

.

Figure 37 Batch deploy succeeded

4.

Clear the Start IMC Server now option and click OK.

Deploying NTA subcomponents on a subordinate server

1.

If the Intelligent Deployment Monitoring Agent is not installed on the subordinate server, install it

first. (Details not shown.)

2.

Start the Intelligent Deployment Monitoring Agent:
