49
{
On Windows, select Start > All Programs > H3C Intelligent Management Center > H3C
Deployment Monitoring Agent.
{
On Linux, run the dma.sh script in the /deploy directory of the IMC installation path.
3. Click the Deploy tab in the Intelligent Deployment Monitoring Agent.
The Deploy tab displays all IMC components that have been installed and their deployment
information.
4. Right-click any component in the list, and then select Batch Deploy from the shortcut menu.
The Batch deploy window displays components that are not deployed, as shown in
Figure 38 .

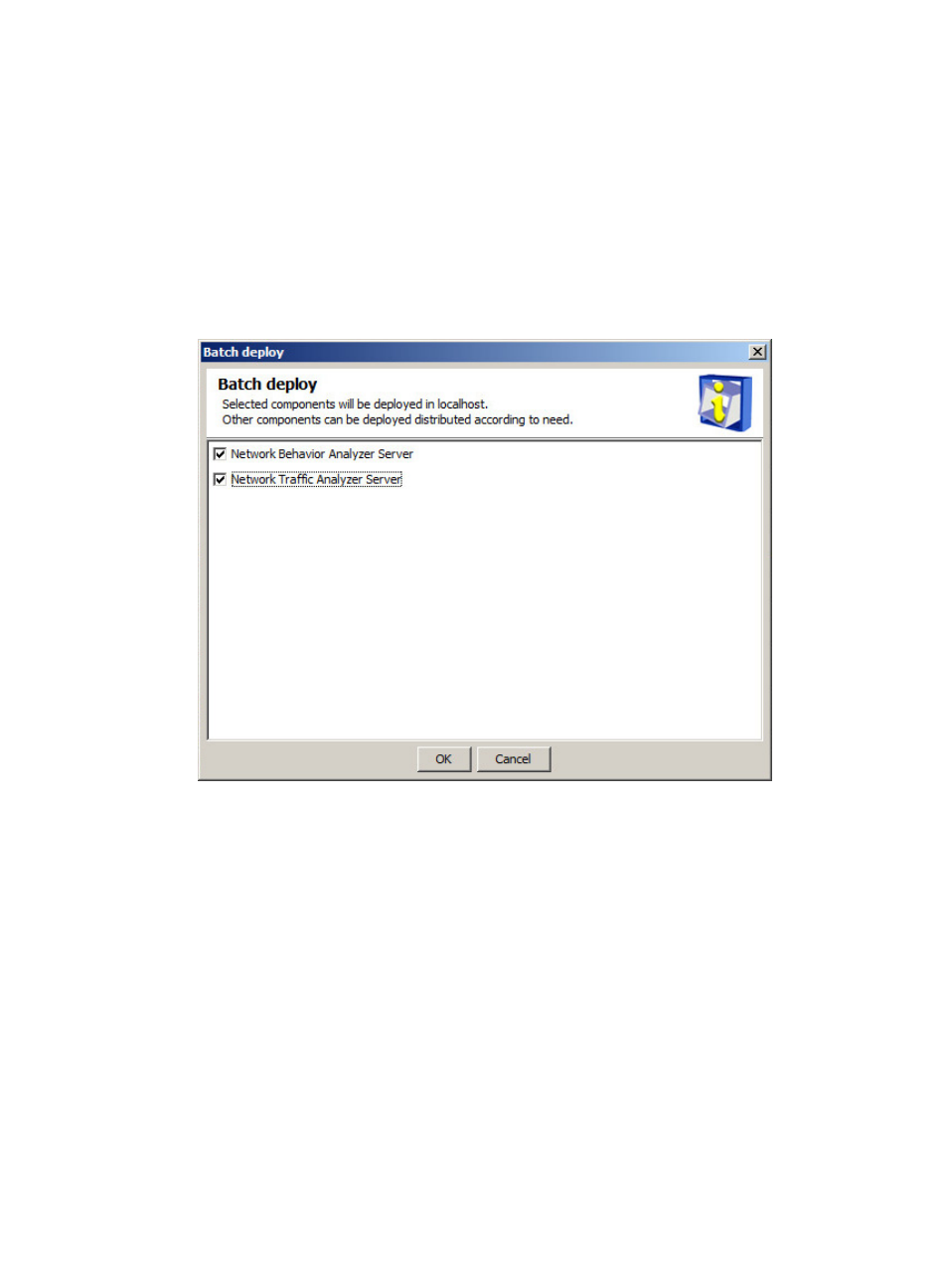

Figure 38 Batch deploy
5. Select the NTA subcomponents you want to deploy on the subordinate server. In this example,
select Network Behavior Analyzer Server and Network Traffic Analyzer Server.
6. Click OK to start the deployment.
The system displays the deployment progress on the Deploying page, as shown in
Figure 39 .
