53

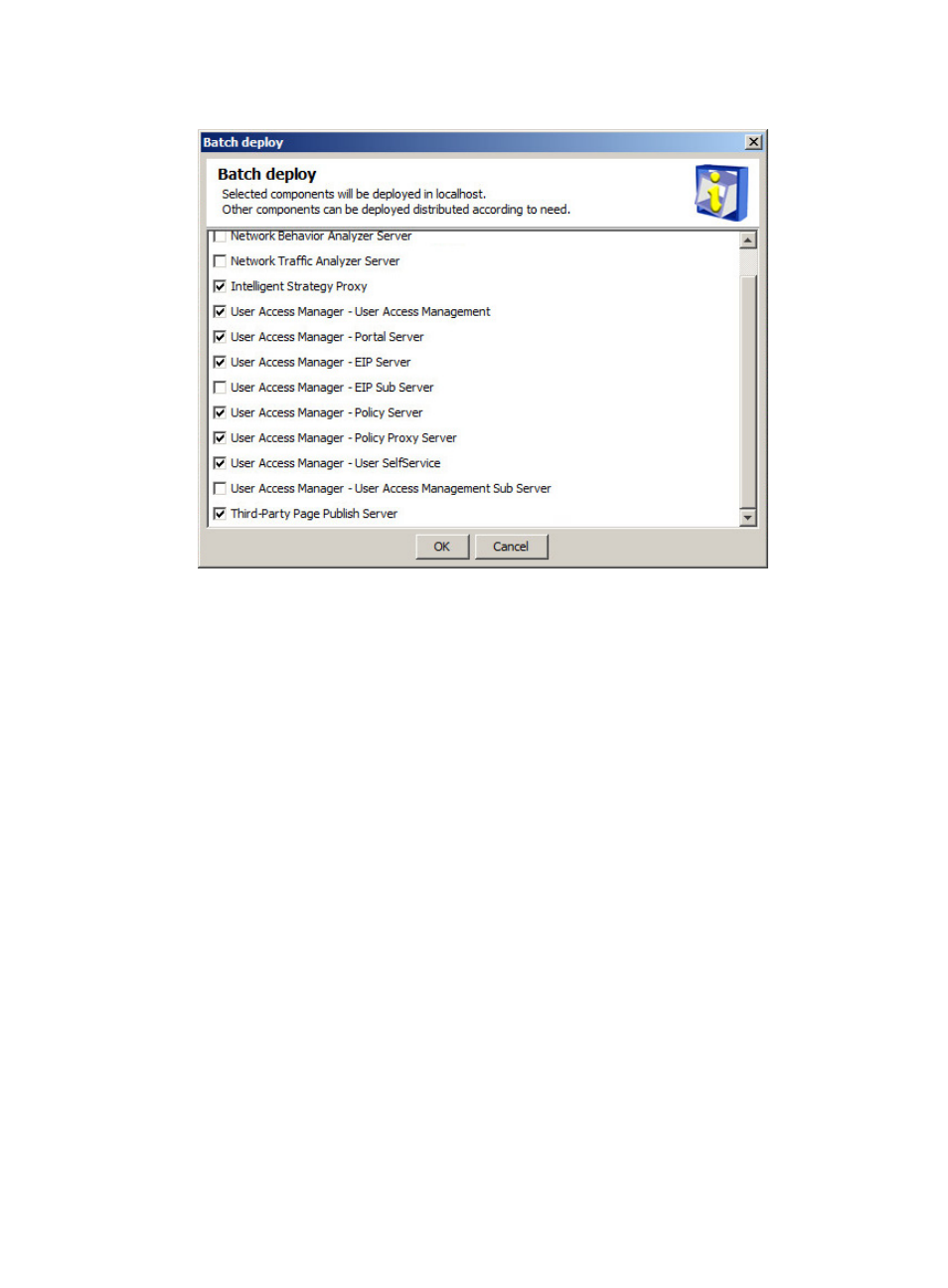

Figure 42 Batch deploy
2. Select the subcomponents you want to deploy on the master server. In this example, select all UAM
subcomponents except User Access Management Sub Server and EIP Sub Server.
3. Click OK to start the deployment.
4. In the Strategy Proxy Server Configuration window (see Figure 43 ), configure the following
parameters:
a. Enter the IP address of the host on which Strategy Proxy Server is to be deployed in the IPv4
Address(Client) field. In this example, use the default value of the parameter.
b. Enter the IP address of the host on which User Access Management Sub Server is to be
deployed in the IPv4 Address(Server) field. In this example, use the default value of the
parameter.
