5-16

z

Add an account and password 00146c8a43ff.

z

Select the service mac.

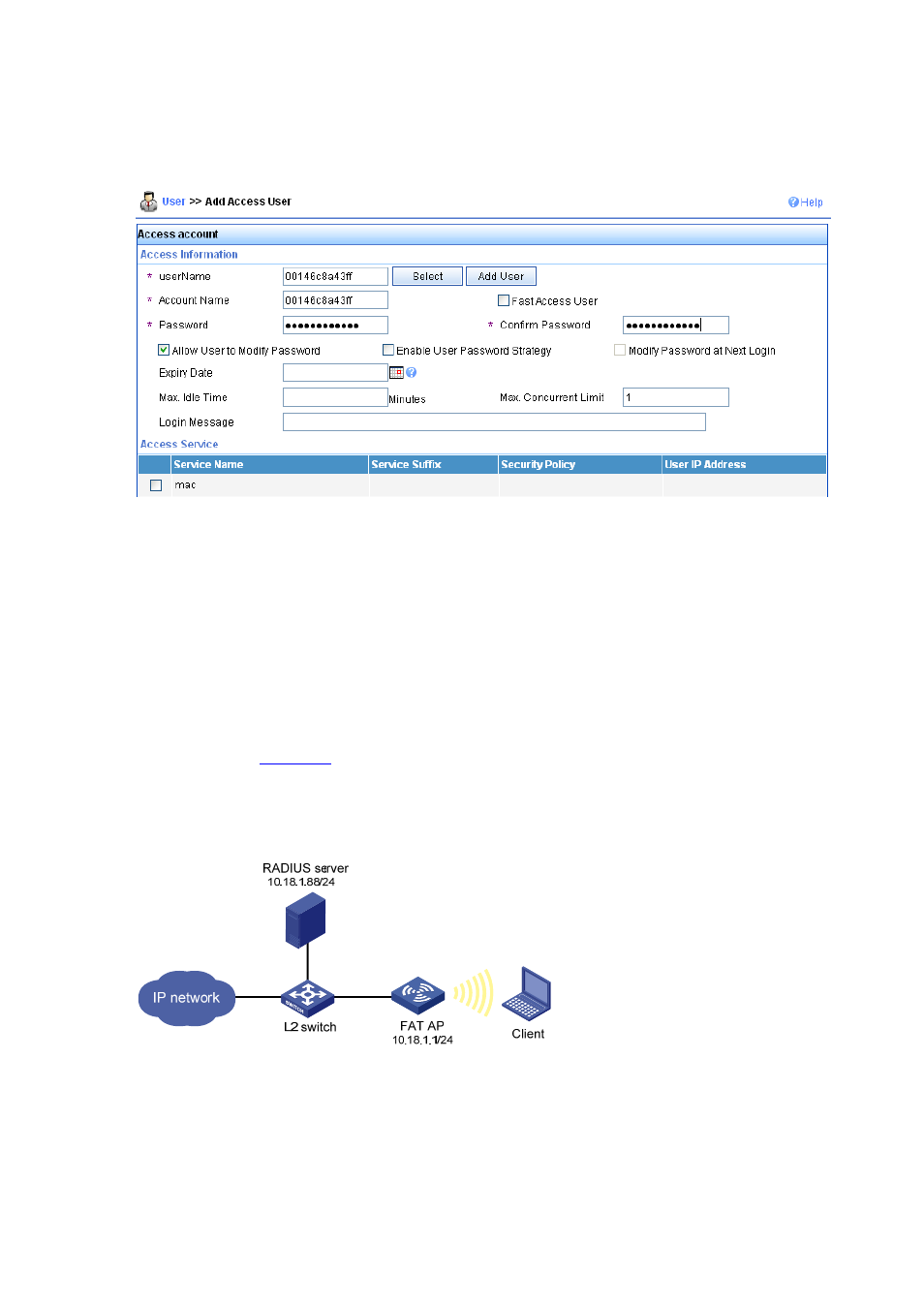

Figure 5-7 Add account

3) Verify the configuration

z

After the client passes the MAC-and-PSK authentication, the client can associate with the AP and

access the WLAN.

z

You can use the display wlan client command, display connection command and display

mac-authentication command to view the online clients.

802.1X Authentication Configuration Example

Network requirements

z

As shown in

Figure 5-8

, an AC with IP address 10.18.1.1, an AP and a RADIUS server with IP

address 10.18.1.88 are connected through a Layer 2 switch.

z

It is required to perform 802.1X authentication on the client.

Figure 5-8 802.1X authentication configuration

Configuration procedure

1) Configure the fat AP

# Enable port security, and set the authentication method of the 802.1X user to eap.

system-view

[AP] port-security enable
