Tri Tool 614RBL Thru 636RBL Clamshells - Manual (Page 76)

76
TRI TOOL INC.
92-0480 : Rev. 130916

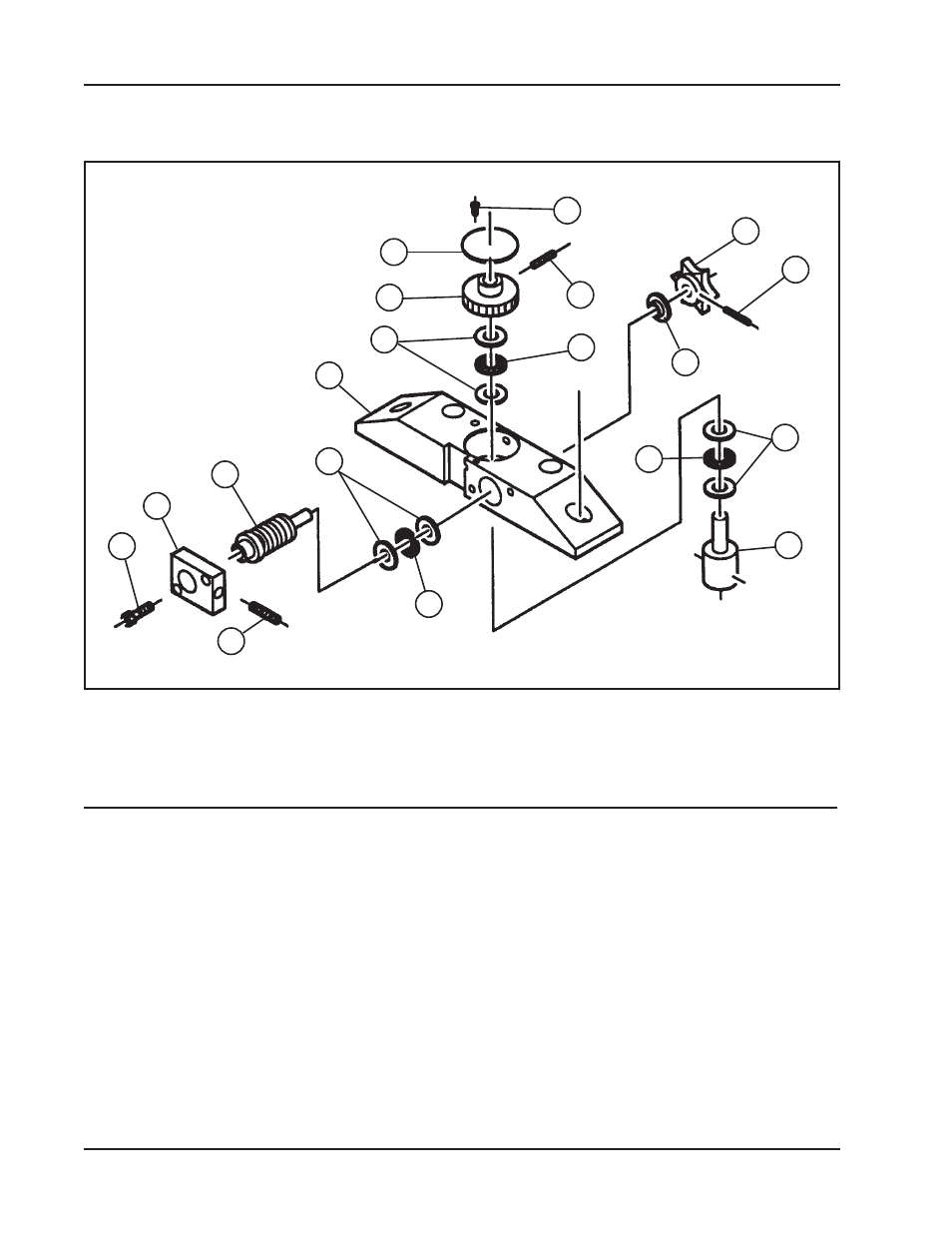

Parts List, Plate Assembly, Gear Adapter (P/N 27-0541)
Item Part
No. No. Description Qty
PLATE ASSEMBLY, GEAR ADAPTER (P/N 27-0541)
1
10
2
3
4
5
7
6
8
9
12
13
15
14
17
16
12
5
11
1. 14-0075 DRIVE SHAFT ASSEMBLY 1
2. 24-1261 PLATE, COVER 1
3. 27-0453 ADAPTER, FEEDSCREW 1
4. 27-0542 ADAPTER PLATE, GEAR 1
5. 29-0068 BEARING, THRUST 2
6. 29-0190 BEARING, THRUST 1
7. 30-0464 PLUNGER, BALL 1
8. 32-0018 PIN, ROLL, 3/32" DIA X 3/4" 1
9. 32-0489 PIN, SPIRAL SPRING 1
10. 33-0020 SCREW, CAP, #8-32 X 1/2" 2
11. 33-0272 SCREW, BUTTON, #8-32 X 1/4" 2
12. 34-0107 WASHER, THRUST 4
