Model 614RBL thru 642RBL Clamshells
92-0480 : Rev. 130916

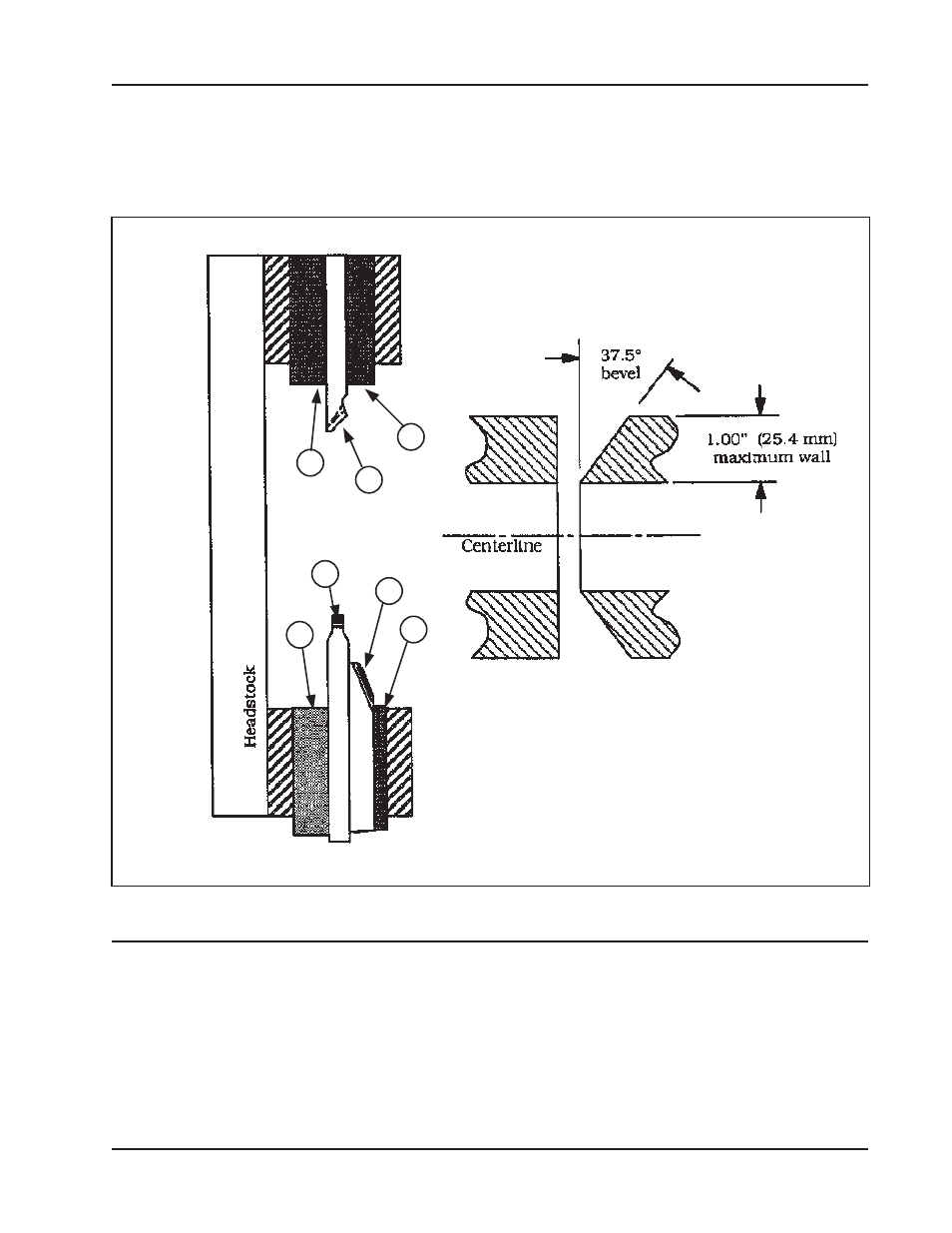

9.3 LEFT HAND SEVER AND SINGLE BEVEL TOOL BIT SET
Use the Left Hand Sever and Single Bevel Tool Bit Set to sever and 37.5° bevel
up to a 1.00” (25.4 mm) wall on the pipe being cut off.
Item Part
No. No. Description Qty
1. 30-0223 SPACER, TOOL, 1/8” X 3/4” X 3” 1
2. 30-0310 SPACER, TOOL, 3/4” X 3/4” X 3” 3
3. 99-4347 TOOL BIT, TRAILING BEVEL 1
4. 99-4078 TOOL BIT, SEVER 1
5. 99-4082 TOOL BIT, LEADING BEVEL 1
1
2
3
4
5
2
2
Tool Block No. 2
Tool Block No. 1
