Model 614RBL thru 642RBL Clamshells

92-0480 : Rev. 130916

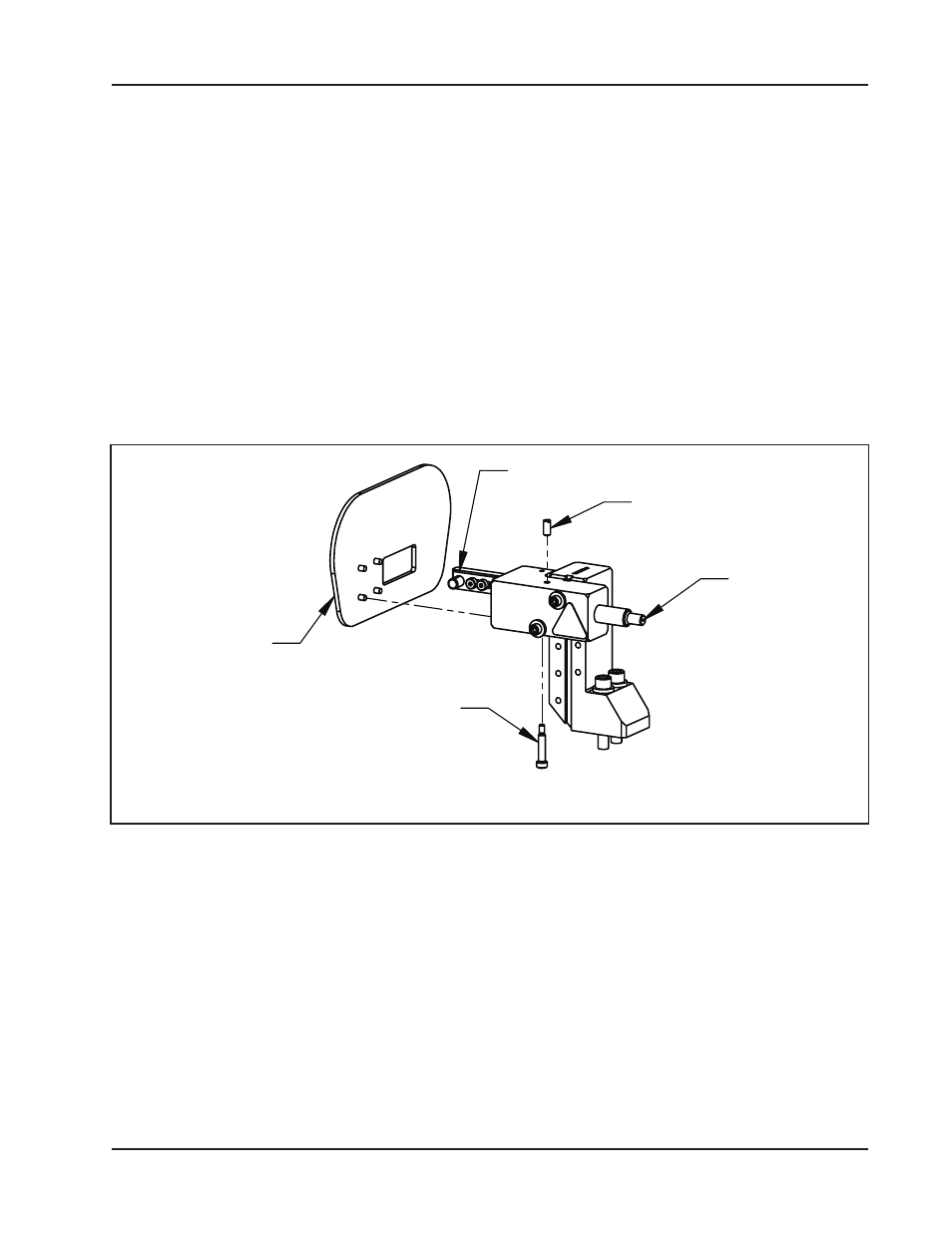

TRIPPER

GUARD

SHOULDER

BOLT

SET SCREW

TRIPPER

SHAFT

TRIPPER

LEVER

Figure: 8.

Tripper Block Assembly

5.10

LUBRICATION AND ADJUSTMENT OF TRIPPER ASSEMBLY

1. Back off the Set Screw until it disengages from the Tripper Shaft.
2. Remove the Tripper Guard and the Shoulder Bolt. Then remove the Tripper

Lever.

3. Remove the Tripper Shaft Assembly from the block and remove old

lubrication.

4. Apply a fresh lubrication to the Tripper Shaft Assembly.
5. Re-install it in the block.
6. Screw in the Set Screw until it is in the Slot on the Tripper Shaft.
7. Re-attach tripper guard.

5.11

LUBRICANT RECOMMENDATIONS
