5.9 TOOL HOLDER ADJUSTMENT
1. Check that the Tool Module is mounted firmly.
2. Loosen the Hold-Down Screws on the Adjustable Slide Rail.
3. Move the Tool Holder to the most outward position.
4. Use the Adjustment Set Screws, to apply a light force to the side of the
Adjustable Slide Rail until is in positive contact with the Tool Holder.
5. Adjust only the screws that are in line with the Tool Holder.
6. Tighten the Hold Down Screws to about 12 in-lb (1.4 Nm) to 24 in-lb (2.7 Nm).
7. Use a hex key to finger tighten the Hold Down Screws.
8. Use the Hex Wrench, to move the Tool Holder to the inward most position.
Note any changes in the feed pressure.
9. Adjust the remaining Adjustment Set Screws so that the Tool Holder has a
smooth, even feel.
10. Run the Tool Holder the full length of the Slide Rail.
11. Tightly lock the Adjustable Slide Rail in place with the Hold-Down Screws and
fully snug the Adjustment Set Screws.
12. Check that the Tool Holder runs smoothly and evenly for the full length of
travel.
13. Readjust as necessary.The Tool Holder should move with some resistance.
ADJUSTMENT
SLIDE RAIL
FEED SPROCKET
ADJUSTMENT
SET SCREWS HOLD-DOWN
SCREWS
TOOL
HOLDER

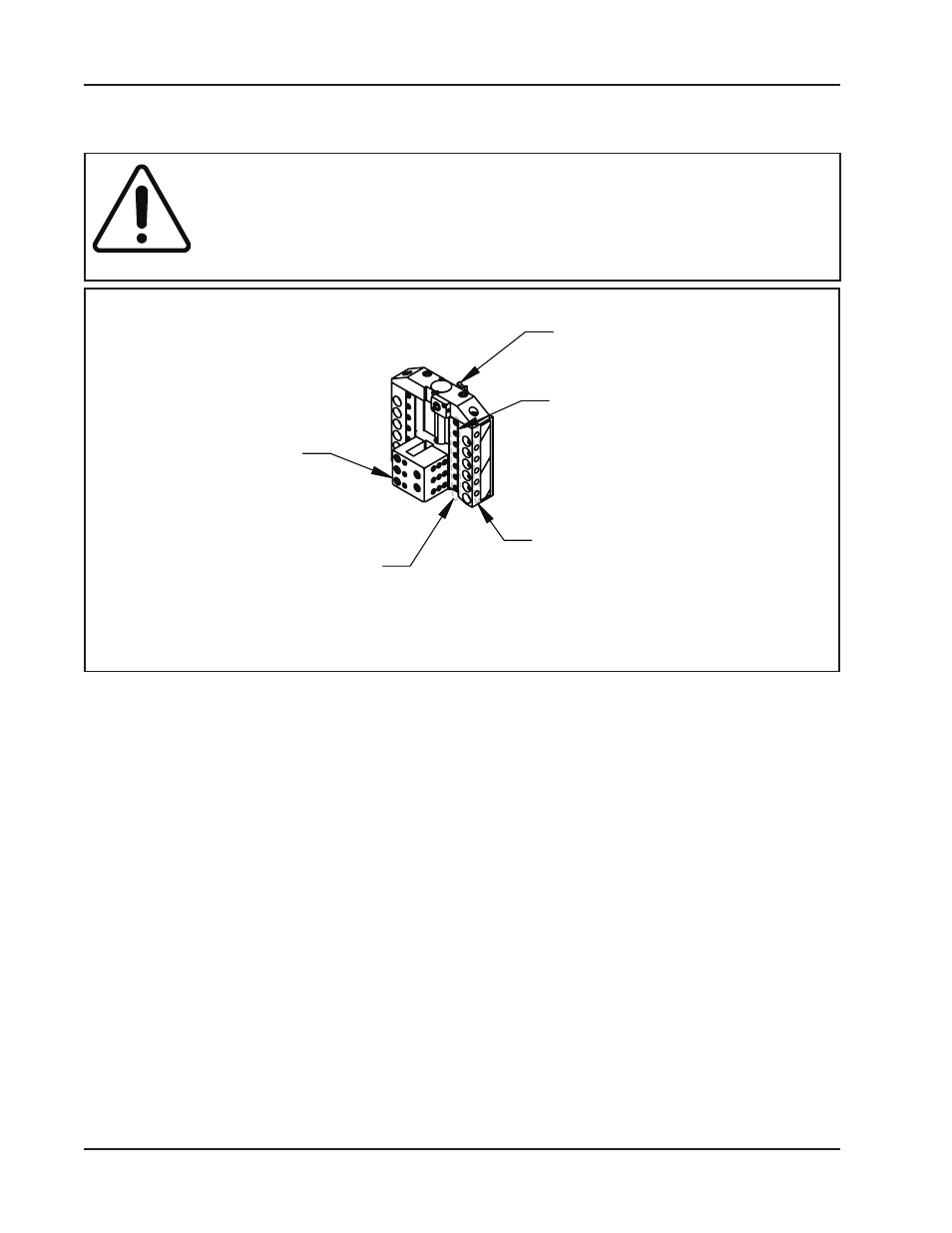

Figure: 7. Tool Holder Adjustment
CAUTION
CAUTION: If you over stress the Mounting Bracket, the Slide Rails
may loosen when mounted if they were adjusted off the Clamshell.
