Model 614RBL thru 642RBL Clamshells
92-0480 : Rev. 130916

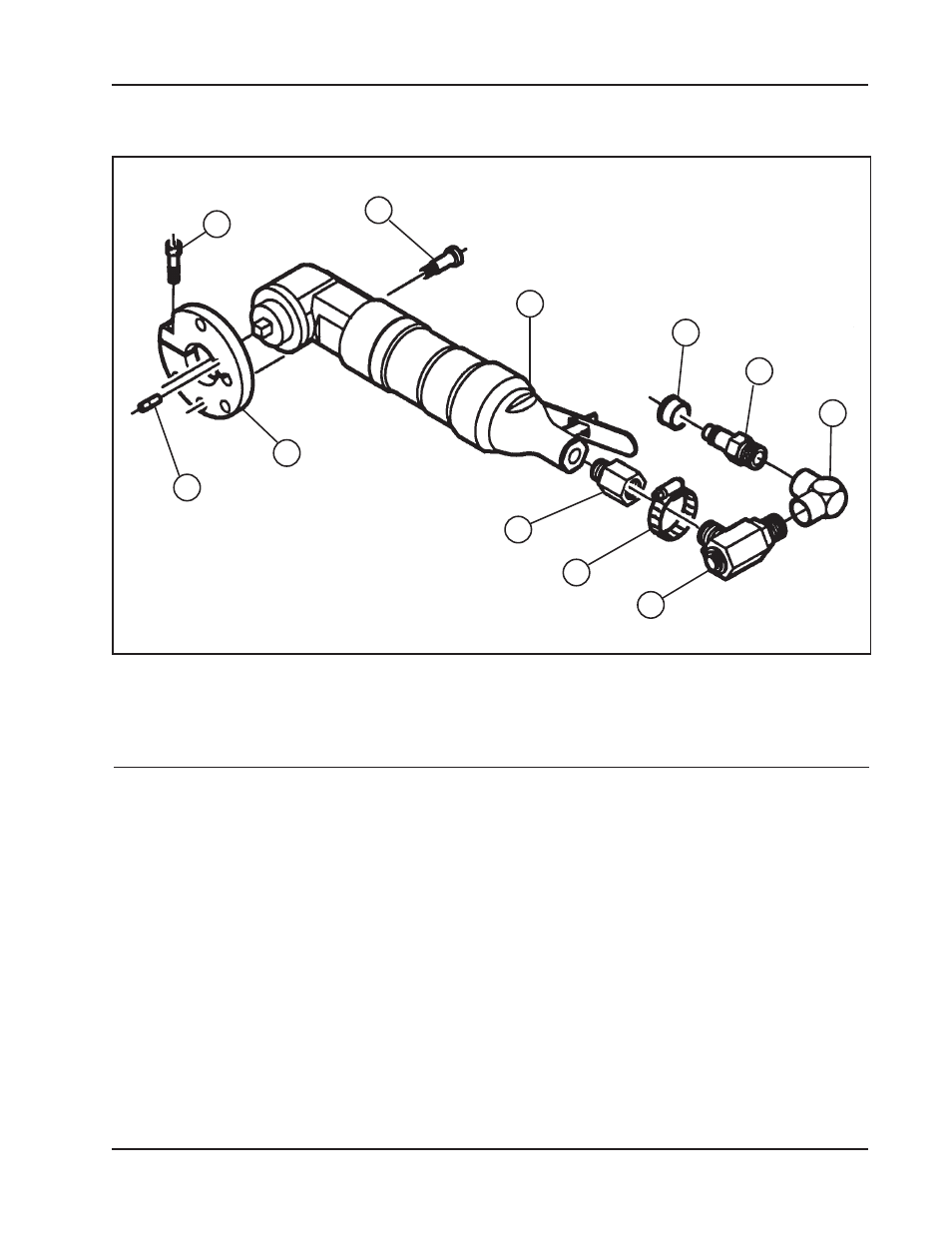

MOTOR ASSEMBLY, AIR, DUAL DRIVE (P/N 57-0209)
1
10
2
3
4
5
7
6
8
9
11
Parts List, Dual Drive Air Motor Assembly (P/N 57-0209)
Item Part
No. No. Description Qty
1. 30-0621 CLAMP, HOSE 1
2. 33-0945 SCREW, SHOULDER, 1/2" X 3/4" 2
47-0660 BRACKET ASSY, TORQUE RESTRAINT 1
3. 32-0257 PIN, DOWEL, 5/16" X 7/8" 1
4. 33-0073 SCREW, CAP, 3/8-16 X 1 1/2" 1
5. 47-0658 BRACKET, TORQUE RESTRAINT 1
6. 54-0062 ELBOW, 90 ° 1
7. 54-0126 COUPLING, MALE, QUICK DISCONNECT 1
8. 54-0201 CAP, PLASTIC 1
9. 54-0204 SWIVEL JOINT 1
10. 54-0329 FITTING, EXTENSION 1
11. 57-0158 MOTOR, AIR 1
