9.4 RIGHT HAND SEVER AND SINGLE BEVEL TOOL BIT SET

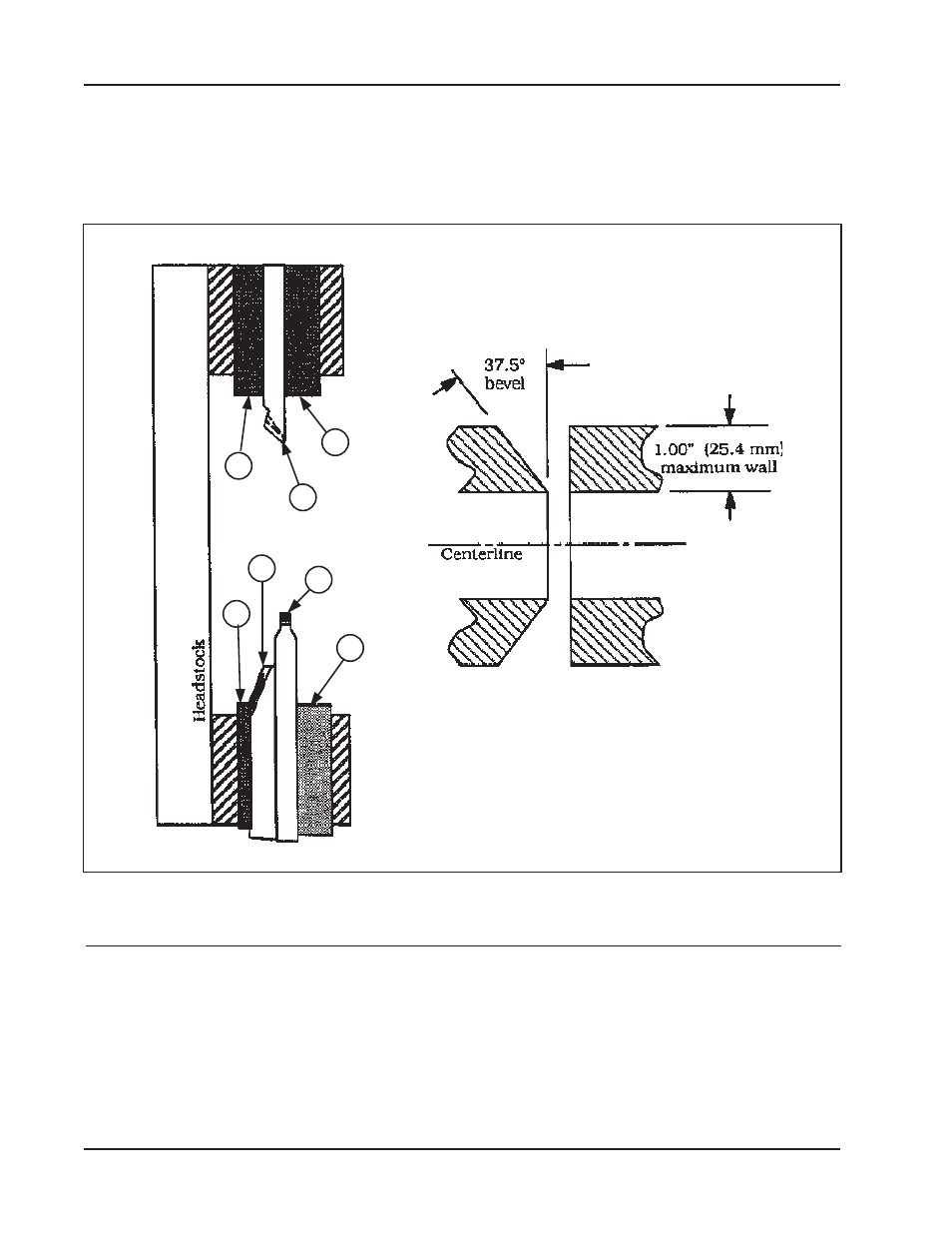

Use the Right Hand Sever and Single Bevel Tool Bit Set to sever and 37.5° bevel up
to a 1.00” (25.4 mm) wall on the pipe the Clamshell is mounted on.
Item Part
No. No. Description Qty
1. 30-0223 SPACER, TOOL, 1/8” X 3/4” X 3” 1
2. 30-0310 SPACER, TOOL, 3/4” X 3/4” X 3” 3
3. 99-4346 TOOL BIT, TRAILING BEVEL 1
4. 99-4077 TOOL BIT, SEVER 1
5. 99-4081 TOOL BIT, LEADING BEVEL 1
1
2
3
4
5
2
2
Tool Block No. 2
Tool Block No. 1
