TASCAM DR-40
9

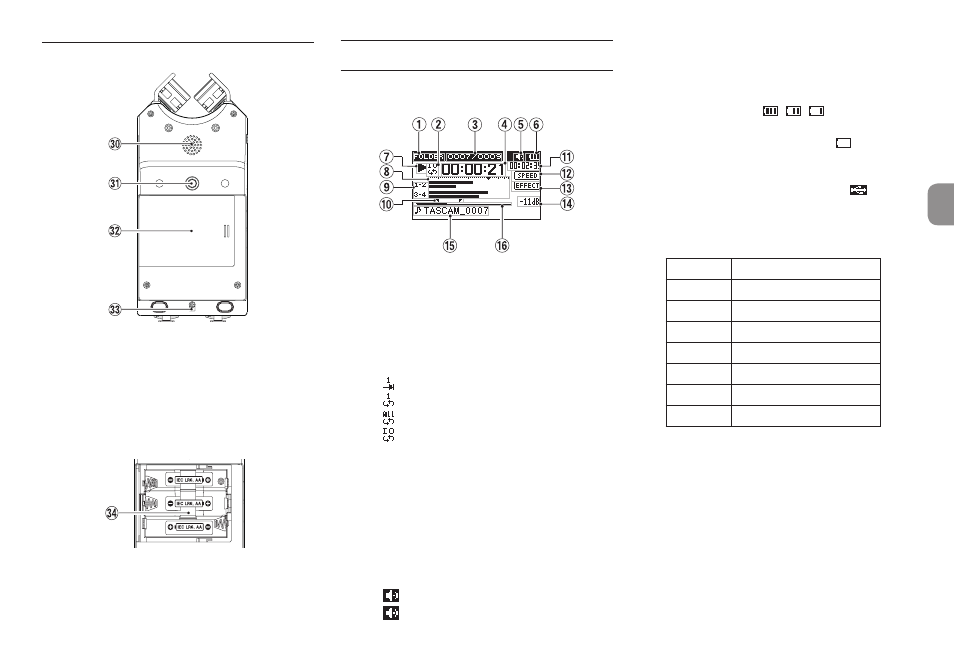

Bottom
; Built-in mono speaker
z Tripod or tilt foot mounting threads
(1/4-inch)
x Battery compartment cover
c Strap attachment
v Battery compartment
Home Screen
This is the screen that is usually shown when the unit
is stopped.
1 Playback area
This shows the current playback file area.
ALL : All files in the MUSIC folder
FOLDER : All files in the selected folder
PLAYLIST : All files added to the playlist
2 Loop/repeat playback status
: Single playback
: Single file repeat playback
: All file repeat playback
: Loop playback
3 Current playback file number/total number
of files
This shows the current file number and total
number of files in the current playback area.
4 Elapsed time
This shows the elapsed time (hours: minutes:
seconds) of the current file.
5 Speaker output
Icon shown: speaker output on
Icon not shown: speaker output off
6 Power supply status
A battery icon appears when power is supplied
by batteries. When batteries are being used,
a battery icon shows the amount of power
remaining in bars ( , , ).
The batteries are almost dead and the power
will soon turn off (standby) if the icon with
no bars appears.
When using a TASCAM PS-P515U AC adapter
(sold separately) or USB bus power,
appears.
7 Recorder operation status
This icon shows the recorder operation status.
Indicator Meaning
8 Stopped
9 Paused
7 Playing back
, Searching forward
m Searching backward
/ Skipping forward
. Skipping backward
8 Level meters
These show the levels of the input and playback
signals.
When overdubbing and in mix mode, the levels
of the mixed input and playback sounds are
shown.
